CTDO3316PF-152
ActiveCentral Technologies

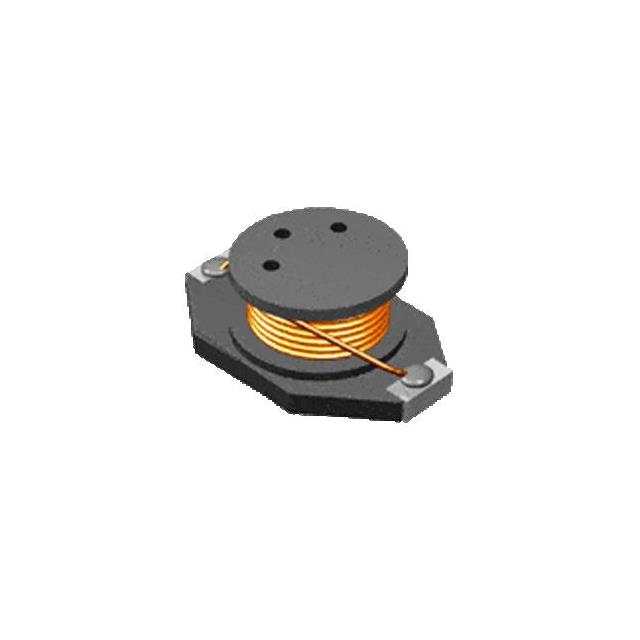

1.5UH SMD UNSHLD POWER INDUCTOR
CTDO3316PF-152
ActiveCentral Technologies
1.5UH SMD UNSHLD POWER INDUCTOR
Description
General part information
CTDO3316PF-152
1.5 µH Unshielded Wirewound Inductor 6.4 A 10mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CTDO3316PF-152 |
|---|---|
| Current - Saturation (Isat) | 8 A |
| Current Rating | 6.4 A |
| DC Resistance (DCR) | 10 mOhm |
| Frequency - Self Resonant | 90 MHz |
| Height - Seated (Max) | 0.205 in |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.51 in |
| Size / Dimension Width | 0.37 in |
| Tolerance | 20 % |
| Type | Wirewound |
