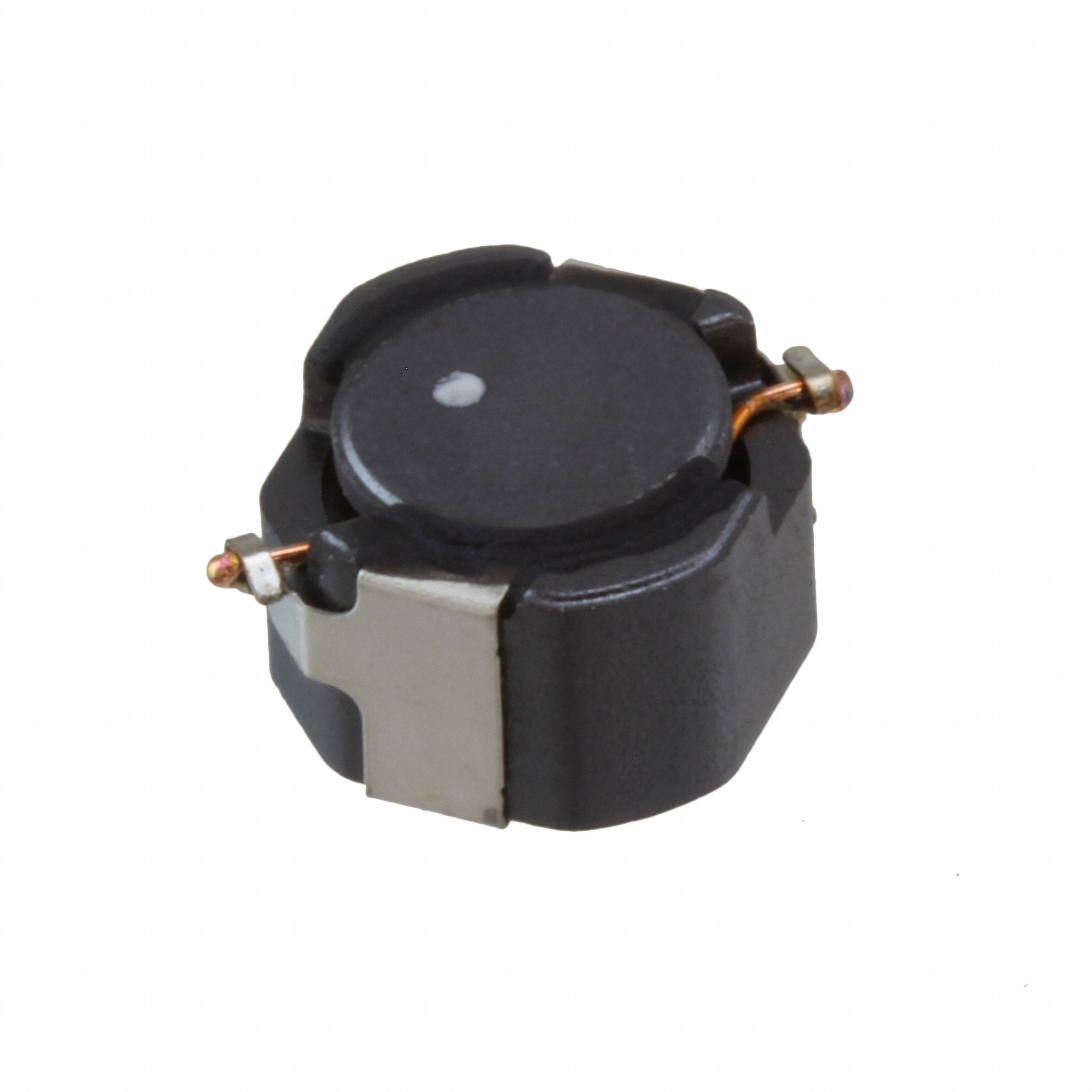

CLF7045T-2R2N-CA
ObsoleteTDK Corporation
FIXED IND 2.2UH 4.3A 18.98 MOHM
CLF7045T-2R2N-CA
ObsoleteTDK Corporation
FIXED IND 2.2UH 4.3A 18.98 MOHM
Description
General part information
CLF7045T-2R2N-CA
2.2 µH Shielded Drum Core, Wirewound Inductor 4.3 A 18.98mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CLF7045T-2R2N-CA |
|---|---|
| Current - Saturation (Isat) | 5.5 A |
| Current Rating | 4.3 A |
| DC Resistance (DCR) (Max) | 18.98 mOhm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.272 in |
| Tolerance | 30 % |
| Type | Drum Core, Wirewound |
