Description
General part information

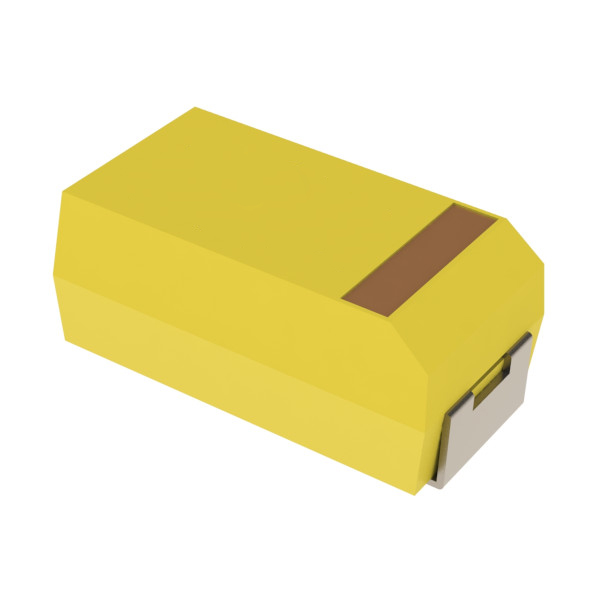

T495U336K016ATE400
33 µF Molded Tantalum Capacitors 16 V 2312 (6032 Metric) 400mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T495U336K016ATE400 |
|---|---|
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 400 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.059 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | U |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2312 (6032 Metric) |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 16 V |
