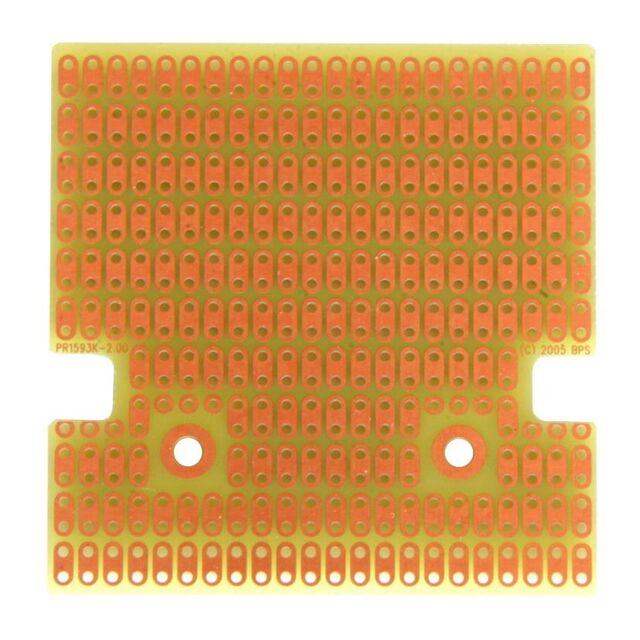

PR1593K
ActiveBusBoard Prototype Systems
FR4 GENERAL PURPOSE PCB BOARD WITH 2 HOLE PAD
PR1593K
ActiveBusBoard Prototype Systems
FR4 GENERAL PURPOSE PCB BOARD WITH 2 HOLE PAD
Description
General part information
PR1593K
Breadboard, General Purpose Plated Through Hole (PTH) 2 Hole Pad (Single Side) 0.1" (2.54mm) Grid
Technical Specifications
Parameters and characteristics for this part
| Specification | PR1593K |
|---|---|
| Board Thickness | 0.063 in |
| Circuit Pattern | Hole Pad (Single Side) |
| Circuit Pattern Hole Count | 2 |
| Hole Diameter | 0.042 in |
| Material | FR4 Epoxy Glass |
| Pitch | 0.1 in |
| Pitch (Grid) | 0.1 in |
| Plating | Non-Plated Through Hole (NPTH), Plated Through Hole (PTH) |
| Proto Board Type | General Purpose, Breadboard |
| Size / Dimension Length | 2.3 in |
| Size / Dimension Width | 2.3 in |
