TT-1LG-024-HNNN
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
TT-1LG-024-HNNN
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Description
General part information
TT-1LG-024-HNNN

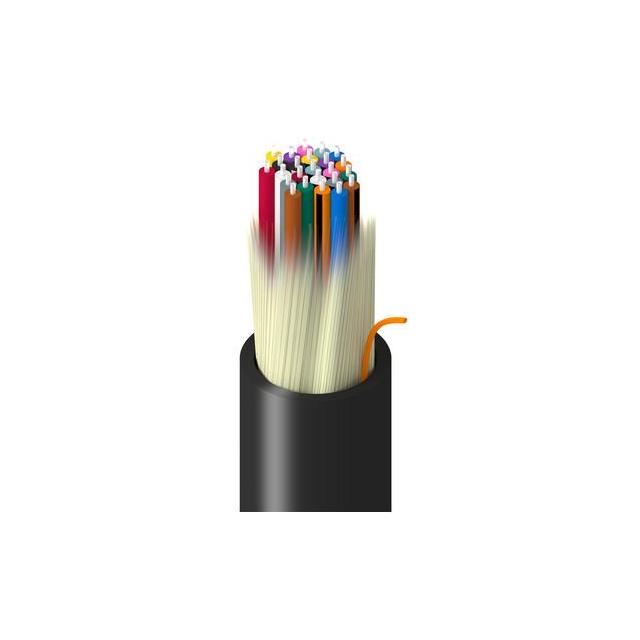

Fiber Optic Cable Black Multimode 125µm
Technical Specifications
Parameters and characteristics for this part
| Specification | TT-1LG-024-HNNN |
|---|---|
| Bend Radius | 115.32 mm |
| Cladding Diameter | 125 µm |
| Core Diameter | 62.5 µm |
| Jacket (Insulation) Diameter | 0.454 in |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Color | Black |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Standard |
| Tensile Strength | 81.6 kg |
| Type | Multimode |
