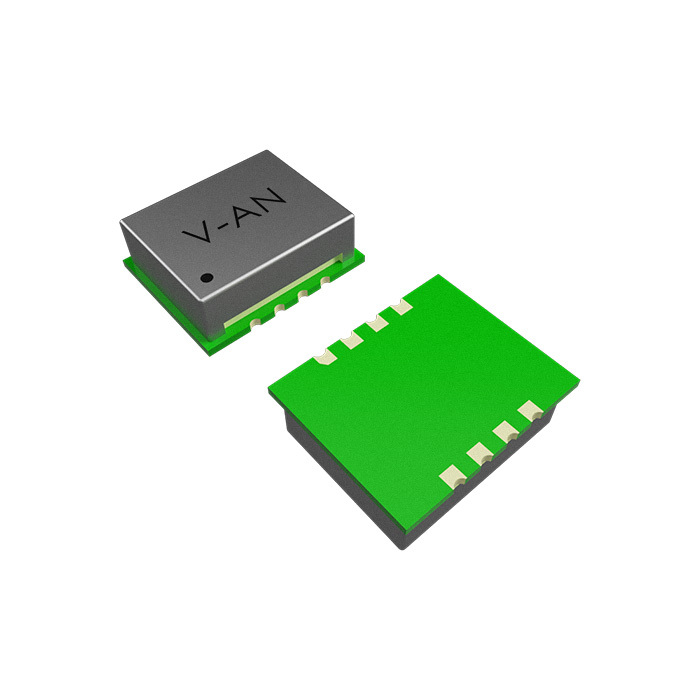

V-AN-0SAZ-B-R-100.00MHZ

V-AN-0SAZ-B-R-100.00MHZ

Active
Abracon LLC

XTAL OSC VCXO 100 MHZ SNWV SMD

Find alt
V-AN-0SAZ-B-R-100.00MHZ

V-AN-0SAZ-B-R-100.00MHZ

Active
Abracon LLC

XTAL OSC VCXO 100 MHZ SNWV SMD

Find alt

Description

General part information

V-AN-0SAZ-B-R-100.00MHZ

Oscillator

Technical Specifications

Parameters and characteristics for this part

SpecificationV-AN-0SAZ-B-R-100.00MHZ
Absolute Pull Range (Maximum)100 ppb
Absolute Pull Range (Minimum)-100 ppb
Base ResonatorCrystal
Frequency100 MHz
Height - Seated (Max)0.22 in
Mounting TypeSurface Mount
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
OutputSine Wave
Package / CaseNo Lead, 8-SMD
Size / Dimension Length0.677 in
Size / Dimension Width0.558 in
TypeVCXO
Voltage - Supply5 VDC
