Part	Contact Finish - Mating	Current Rating	Number of Rows	Material Flammability Rating	Style	Row Spacing - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Voltage Rating	Shrouding	Number of Positions Loaded	Contact Material	Fastening Type	Number of Positions	Termination	Mounting Type	Insulation Material	Contact Type	Contact Shape	Connector Type	Pitch - Mating	Note	Contact Termination	Row Spacing	Pitch	Features	Color	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Length - Mating	Insulation Height	Contact Finish Thickness - Post	Contact Finish	Cable Termination	Wire Type	Wire Gauge	Overall Contact Length	Current Rating
Hirose Electric Co Ltd HIF3BA-34P-2.54W(88)	Gold	1 A	2	UL94 V-0	Board Cable/Wire	0.1 in	-55 °C	85 °C	Black	200 VDC	Shrouded - 4 Wall	All	Brass	Eject Hooks Latch Lock	34	Wire Wrap	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Square	Header	0.1 in
Hirose Electric Co Ltd HIF3BA-60D-2.54C			2				-55 °C	85 °C							60		Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket		Receptacle		Contacts Not Included	Crimp	0.1 in	0.1 in	Polarizing Key	Black
Hirose Electric Co Ltd HIF3BA-40PA-2.54DS(71)	Gold	1 A	2	UL94 V-0	Board Cable/Wire	0.1 in	-55 °C	85 °C	Black	200 VDC	Shrouded - 4 Wall	All	Brass	Eject Hooks Latch Lock	40	Solder	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Square	Header	0.1 in					Keying Slot Mounting Flange		0.118 in	Tin	8 µin	0.236 in	0.335 in	78.7 µin
Hirose Electric Co Ltd HIF3BA-64PD-2.54R-MC			2											Eject Hooks Latch Lock	64		Free Hanging (In-Line)		Male Pin		Header				0.1 in	0.1 in	Feed Through Polarizing Key Strain Relief	Black							Gold	IDC	Ribbon Cable	28 AWG
Hirose Electric Co Ltd HIF3BA-16PA-2.54DSA(74)	Gold	1 A	2	UL94 V-0	Board Cable/Wire	0.1 in	-55 °C	85 °C	Black	200 VDC	Shrouded - 4 Wall	All	Brass	Eject Hooks Latch Lock	16	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Square	Header	0.1 in					Keying Slot		0.13 in		20 Ąin	0.236 in	0.701 in						0.657 in
Hirose Electric Co Ltd HIF3BA-40D-2.54R-CL(71)			2											Latch Lock	40		Free Hanging (In-Line)		Female Socket		Socket				0.1 in	0.1 in	Feed Through Polarizing Key Strain Relief	Black							Gold	IDC	Ribbon Cable	28 AWG
Hirose Electric Co Ltd HIF3BA-10PA-2.54DS(63)	Gold	0 A	2	UL94 V-0	Board Cable/Wire	0.1 in	-55 °C	85 °C	Black	200 VDC	Shrouded - 4 Wall	All	Brass	Eject Hooks Latch Lock	10	Solder	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Square	Header	0.1 in					Keying Slot Mounting Flange		0.118 in	Tin	8 µin		0.335 in	78.7 µin						Varies by Wire Gauge
Hirose Electric Co Ltd HIF3BA-44D-2.54C(63)			2				-55 °C	85 °C							44		Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Female Socket		Socket		Contacts Not Included	Crimp	0.1 in	0.1 in	Polarizing Key	Black
Hirose Electric Co Ltd HIF3BA-40PA-2.54DS(82)	Gold	1 A	2	UL94 V-0	Board Cable/Wire	0.1 in	-55 °C	85 °C	Black	200 VDC	Shrouded - 4 Wall	All	Brass	Eject Hooks Latch Lock	40	Solder	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Square	Header	0.1 in					Keying Slot Mounting Flange		0.118 in		8 µin	0.236 in	0.335 in
Hirose Electric Co Ltd HIF3BA-50PA-2.54DS(63)	Gold	0 A	2	UL94 V-0	Board Cable/Wire	0.1 in	-55 °C	85 °C	Black	200 VDC	Shrouded - 4 Wall	All	Brass	Eject Hooks Latch Lock	50	Solder	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Square	Header	0.1 in					Keying Slot Mounting Flange		0.118 in	Tin	8 µin		0.335 in	78.7 µin						Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

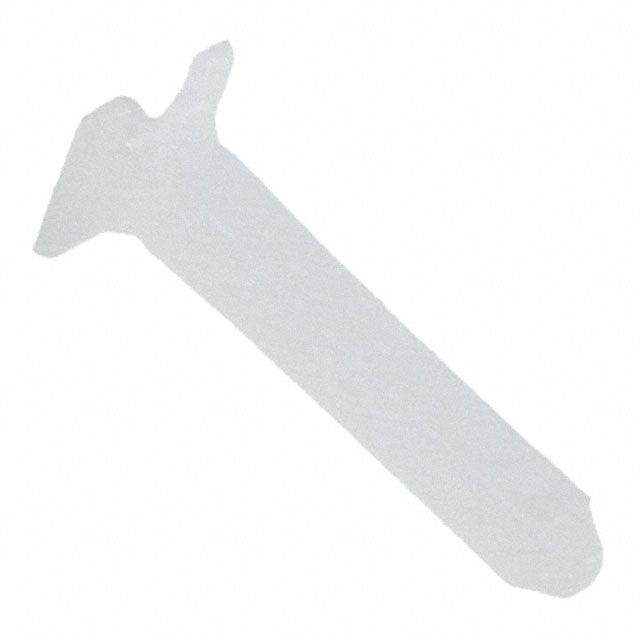

HIF3BA-GPIN | Datasheet
