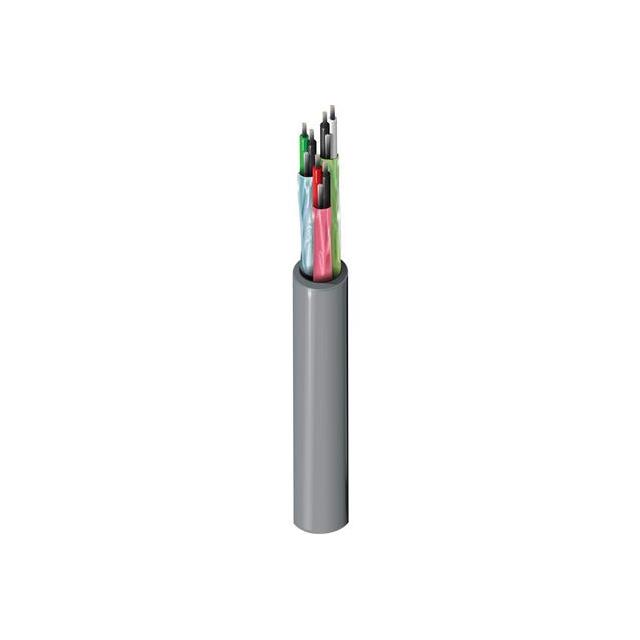

82777 877U500

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG NAT

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 6COND 22AWG NAT

Technical Specifications

Parameters and characteristics for this part

Specification	82777 877U500

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.02 mm
Jacket (Insulation) Diameter [diameter]	0.237 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Type	Jacket Color	Jacket (Insulation) Material	Number of Conductors	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Conductor Insulation	Usage	Shield Coverage	Conductor Material	Shield Material	Cable Type	Voltage	Length [x]	Length [x]	Wire Gauge
Belden Inc. 82777 877U500	6.02 mm	0.237 in	60 °C	0 °C	Foil	Natural	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	6	Drain Wire	0.432 mm	0.017 in	7	30 AWG	UL Style CMP	Fluorinated Ethylene-Propylene (FEP)	Audio Control Instrumentation	100 %	Copper Tinned	Aluminum	Multi-Pair	300 V	500 '	152.4 m	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.18

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Natural 22 AWG Foil 500.0' (152.4m)
