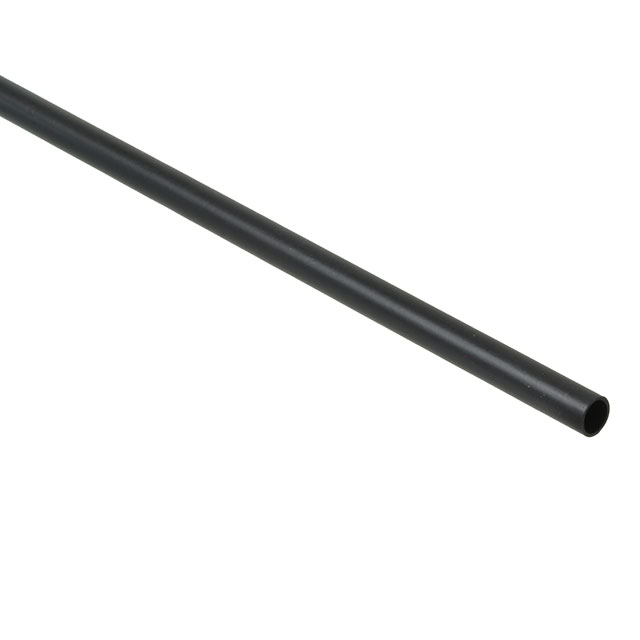

SCL-3/8-2-STK-CS5930

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING & SLEEVES SCL-3/8-2-STK-CS5930 PRICE PER FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

SCL-3/8-2-STK-CS5930

Active

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING & SLEEVES SCL-3/8-2-STK-CS5930 PRICE PER FOOT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SCL-3/8-2-STK-CS5930

Color	Red
Features	Encapsulant Lined, Moisture Resistant, Vibration Resist, Splash Resistant, Strain Resistant, Abrasion Resistant, Flex Resistant
Inner Diameter - Recovered [diameter]	3.43 mm
Inner Diameter - Recovered [diameter]	0.135 "
Inner Diameter - Supplied [diameter]	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	1.27 mm
Recovered Wall Thickness	0.05 in
Shelf Life	144 Months
Shrink Temperature	125 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C
Type	Tubing, Semi Rigid

RAYCHEM SCL Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Length [x]	Length [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Shelf Life	Features	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered [diameter]
TE Connectivity Raychem Cable Protection SCL-3/8-0-STK	-55 °C	110 °C	3.43 mm	0.135 "	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Black	35 °C	0 °C	0.375 in	9.53 mm	Tubing Semi Rigid	1.27 mm	0.05 in	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist
TE Connectivity Raychem Cable Protection SCL-1/4-0-STK-CS5799	-55 °C	110 °C	2.03 mm	0.08 in	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Black	35 °C	0 °C	0.25 in	6.35 mm	Tubing Semi Rigid	1.19 mm	0.047 "	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist
TE Connectivity Raychem Cable Protection NB3418-000
TE Connectivity Raychem Cable Protection SCL-3/8-2-STK-CS5930	-55 °C	110 °C	3.43 mm	0.135 "	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Red	35 °C	0 °C	0.375 in	9.53 mm	Tubing Semi Rigid	1.27 mm	0.05 in	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist
TE Connectivity Raychem Cable Protection SCL-1/2-2-STK	-55 °C	110 °C	4.95 mm	0.195 in	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Red	35 °C	0 °C	0.5 in	12.7 mm	Tubing Semi Rigid	1.4 mm	0.055 in	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist
TE Connectivity Raychem Cable Protection SCL-1/2-0-STK	-55 °C	110 °C	4.95 mm	0.195 in	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Black	35 °C	0 °C	0.5 in	12.7 mm	Tubing Semi Rigid	1.4 mm	0.055 in	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist
TE Connectivity Raychem Cable Protection SCL-1-0-STK-CS6214	-55 °C	110 °C	10.16 mm	0.4 in	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Black	35 °C	0 °C	1 in	25.4 mm	Tubing Semi Rigid			125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist	1.91 mm	0.075 in
TE Connectivity Raychem Cable Protection SCL-1/8-1-STK-CS6214	-55 °C	110 °C	0.023 in		Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Brown	35 °C	0 °C	0.125 "	3.18 mm	Tubing Semi Rigid	0.97 mm	0.038 in	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist			0.58 mm
TE Connectivity Raychem Cable Protection SCL-1-0-STK	-55 °C	110 °C	10.16 mm	0.4 in	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Black	35 °C	0 °C	1 in	25.4 mm	Tubing Semi Rigid			125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist	1.91 mm	0.075 in
TE Connectivity Raychem Cable Protection SCL-3/8-0-STK-CS6073	-55 °C	110 °C	3.43 mm	0.135 "	Polyolefin (PO) Irradiated	1.22 m	4 ft	1	3	Black	35 °C	0 °C	0.375 in	9.53 mm	Tubing Semi Rigid	1.27 mm	0.05 in	125 °C	144 Months	Abrasion Resistant Encapsulant Lined Flex Resistant Moisture Resistant Splash Resistant Strain Resistant Vibration Resist

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.23

Description

General part information

RAYCHEM SCL Series

Heat Shrink Tubing, Semi Rigid 0.375" (9.53mm) 3 to 1 Red 4.00' (1.22m)
