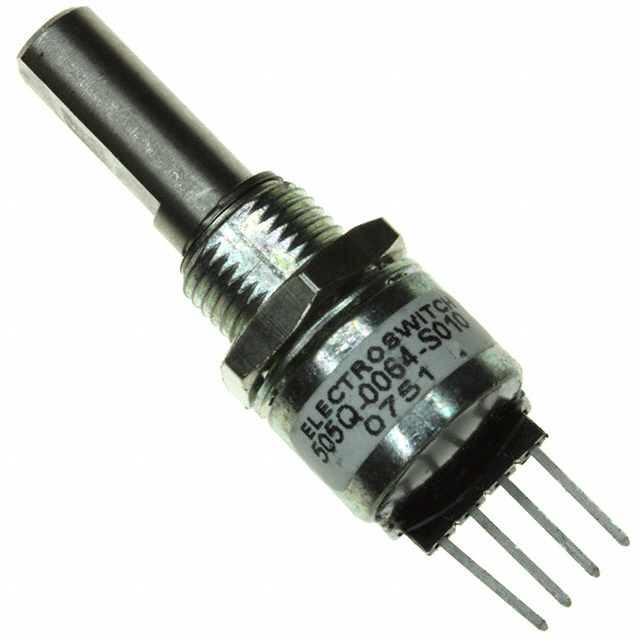

505Q-0064-S010

Active

ELECTROSWITCH

ROTARY ENCODER MAGNETIC 64PPR

Search across all available documentation for this part.

Active

ELECTROSWITCH

ROTARY ENCODER MAGNETIC 64PPR

Technical Specifications

Parameters and characteristics for this part

Specification	505Q-0064-S010

Actuator Type	0.25
Actuator Type	Flatted End
Built in Switch	False
Detent	False
Encoder Type	Magnetic
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	64
Rotational Life (Cycles Min) [Min]	10M
Termination Style	PC Pin

ROTARY ENCODER MAGNETIC 64PPR

Part	Detent	Encoder Type	Termination Style	Orientation	Rotational Life (Cycles Min) [Min]	Output Type	Pulses per Revolution	Mounting Type	Actuator Type	Actuator Type	Built in Switch
ELECTROSWITCH 505Q-0064-S010		Magnetic	PC Pin	Vertical	10M	Quadrature (Incremental)	64	Panel, PCB Through Hole	0.25	Flatted End

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 237.04

General part information

Rotary Encoder Magnetic 64 Quadrature (Incremental) Vertical
