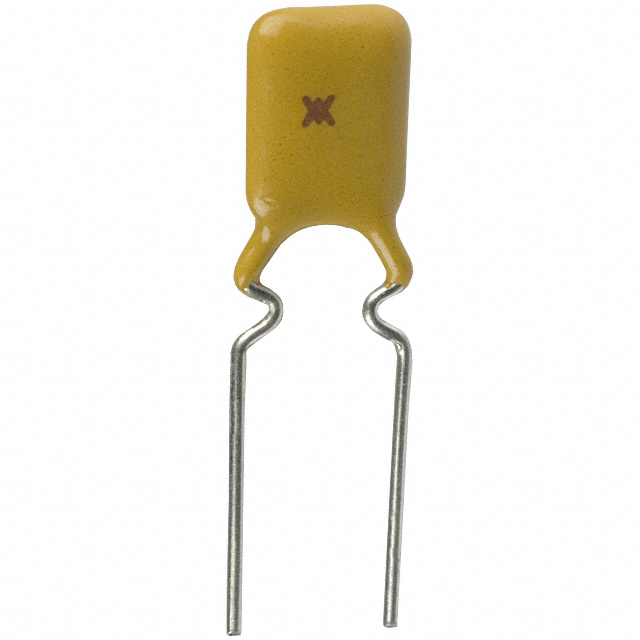

RTEF190S
ObsoleteLITTELFUSE
PTC RESET FUSE 33V 1.9A RADIAL
RTEF190S
ObsoleteLITTELFUSE
PTC RESET FUSE 33V 1.9A RADIAL
Description
General part information
RTEF190S
Polymeric PTC Resettable Fuse 33V 1.9 A Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | RTEF190S |
|---|---|
| Approval Agency | CSA, TUV, UL |
| Current - Hold (Ih) (Max) | 1.9 A |
| Current - Max | 40 A |
| Current - Trip (It) | 3 A |
| Height - Seated (Max) | 0.532 in |
| Lead Spacing | 0.199 in |
| Mounting Type | Through Hole |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 45 mOhms |
| Resistance - Post Trip (R1) (Max) | 92 mOhms |
| Size / Dimension Length | 0.35 in |
| Size / Dimension Width | 0.118 in |
| Time to Trip | 3.5 s |
| Type | Polymeric |
| Voltage - Max | 33 V |
