PM2185.021NL

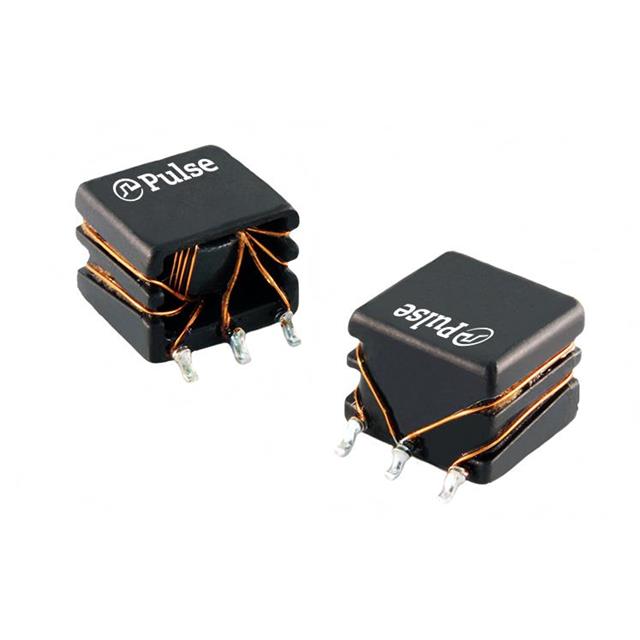

538µH Isolation and Data Interface (Encapsulated) Pulse Transformer 2:1CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PM2185.021NL |
|---|---|
| ET (Volt-Time) | 24 VµS |
| Height - Seated (Max) | 0.299 in |
| Inductance | 538 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.362 in |
| Size / Dimension Width | 0.323 in |
| Transformer Type | Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary | 2 |
| Turns Ratio - Secondary | 1 |
