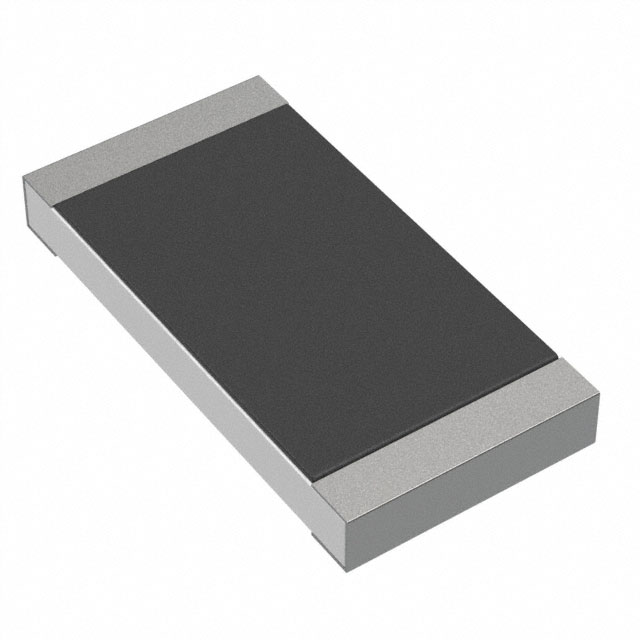

HV732HTTE3833F
ActiveKOA Speer Electronics, Inc.
RES 383K OHM 1% 1/2W 2010
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HV732HTTE3833F
ActiveKOA Speer Electronics, Inc.
RES 383K OHM 1% 1/2W 2010
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HV732HTTE3833F |
|---|---|
| Composition | Thick Film |
| Features | Moisture Resistant, High Voltage |
| Height - Seated (Max) [Max] | 0.7 mm |
| Height - Seated (Max) [Max] | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 2010 (5025 Metric) |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistance | 383 kOhms |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [y] | 2.5 mm |
| Supplier Device Package | 2010 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.21 | |
Description
General part information
HV732HTTE3833F
383 kOhms ±1% 0.5W, 1/2W Chip Resistor 2010 (5025 Metric) High Voltage, Moisture Resistant Thick Film
