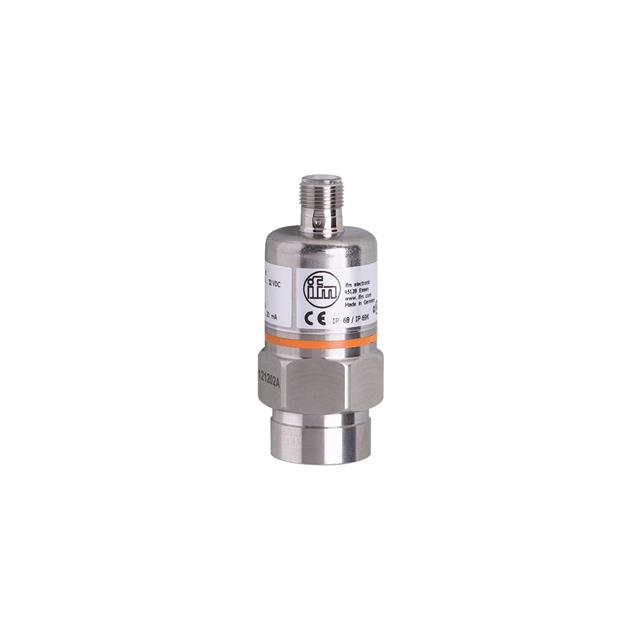

PA3224
Activeifm efector, inc.
SENSOR, PRESSURE, SS, 0 TO 10 BA
PA3224
Activeifm efector, inc.
SENSOR, PRESSURE, SS, 0 TO 10 BA
Description
General part information
PA3224
SENSOR, PRESSURE, SS, 0 TO 10 BA
Technical Specifications
Parameters and characteristics for this part
| Specification | PA3224 |
|---|---|
| Applications | Industrial Automation |
| Maximum Pressure | 1087.78 PSI |
| Operating Pressure | 145.04 PSI |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Pin Count | 4 |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | M12 |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 9.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
