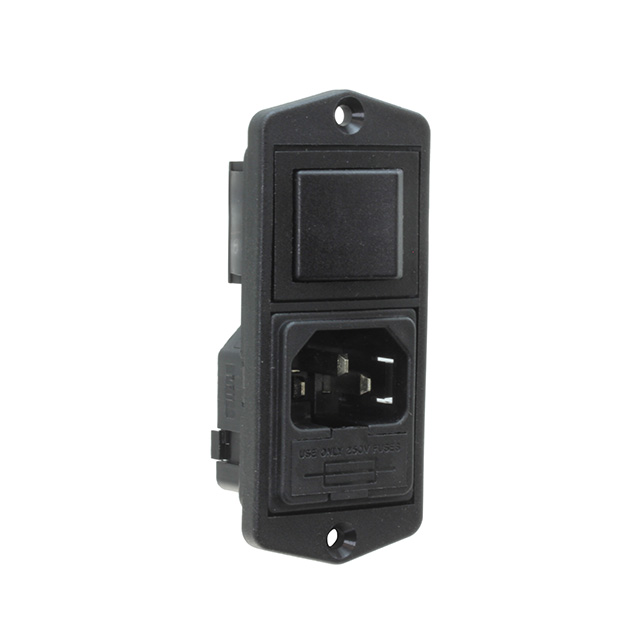

BVA01/Z0000/10
ActiveBULGIN LIMITED
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BVA01/Z0000/10
ActiveBULGIN LIMITED
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BVA01/Z0000/10 | BVA01/Z Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | VDE, CSA, UL, ENEC | VDE, CSA, UL, ENEC |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder | Fuse Holder |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Flange | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 33 mm | 33 mm |
| Panel Cutout Dimensions [y] | 66.3 mm | 53.2 - 66.3 mm |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.25 in | 0.25 in |
| Termination | 6.3 mm | 6.3 mm |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
BVA01/Z Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Termination | Termination | Termination | Mounting Type | Voltage Rating - Appliance Inlet | Filter Type | Accomodates a Fuse | Material Flammability Rating | Current Rating - Appliance Inlet | Connector Style | Switch Features | Connector Type | Fuse Holder, Drawer | Approval Agency | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED BVA01/Z0000/12 | 0.25 in | 6.3 mm | Quick Connect | Flange, Panel Mount | 250 VAC | Unfiltered - Commercial | UL94 V-0 | 10 A | IEC 320-C14 | Switch On-Off | Receptacle, Male Blades - Module | Fuse Holder | CSA, ENEC, UL, VDE | 33 mm | 66.3 mm | |
BULGIN LIMITED BVA01/Z0000/69 | 0.25 in | 6.3 mm | Quick Connect | Flange, Panel Mount | 250 VAC | Unfiltered - Commercial | UL94 V-0 | 10 A | IEC 320-C14 | Switch On-Off | Receptacle, Male Blades - Module | Fuse Holder | CSA, ENEC, UL, VDE | 33 mm | 53.2 mm | |
BULGIN LIMITED BVA01/Z0000/02 | 0.25 in | 6.3 mm | Quick Connect | Flange, Panel Mount | 250 VAC | Unfiltered - Commercial | UL94 V-0 | 10 A | IEC 320-C14 | Switch On-Off | Receptacle, Male Blades - Module | Fuse Holder | 33 mm | 53.2 mm | ||
BULGIN LIMITED BVA01/Z0000/10 | 0.25 in | 6.3 mm | Quick Connect | Flange, Panel Mount | 250 VAC | Unfiltered - Commercial | UL94 V-0 | 10 A | IEC 320-C14 | Switch On-Off | Receptacle, Male Blades - Module | Fuse Holder | CSA, ENEC, UL, VDE | 33 mm | 66.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.14 | |
| 10 | $ 16.28 | |||
| 25 | $ 14.73 | |||
| 50 | $ 13.69 | |||
| 100 | $ 12.74 | |||
| 250 | $ 11.63 | |||
| 500 | $ 10.87 | |||
Description
General part information
BVA01/Z Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
