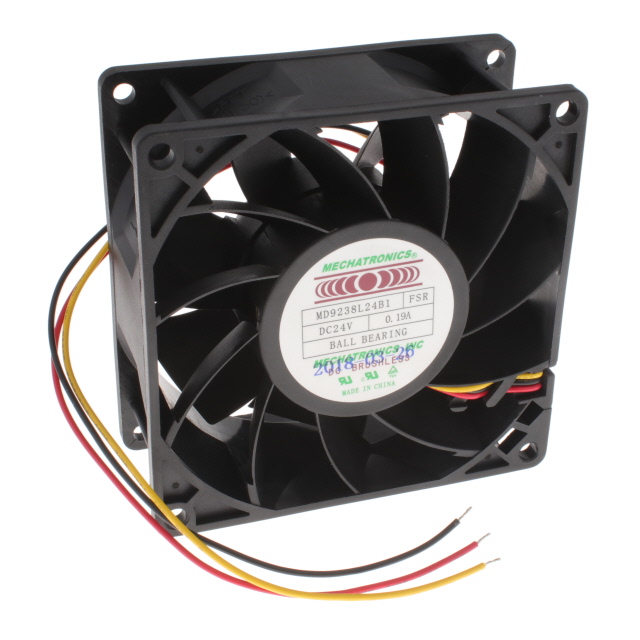

MD9238L24B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

MD9238L24B1-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 92X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MD9238L24B1-FSR

Air Flow	71 CFM
Air Flow	1.99 mł/min
Approval Agency	CE, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.19 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	44.5 dB
RPM	3200 RPM
Static Pressure	0.31 in H2O
Static Pressure	77.2 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Weight	180.08 g
Weight	0.397 lb
Width [y]	38 mm

MD9238 Series

Part	Bearing Type	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	Approval Agency	Termination	Features	Material - Blade	Weight	Weight	Current Rating (Amps)	Air Flow	Air Flow	Noise	RPM	Fan Type	Voltage - Rated [custom]
Mechatronics Bearing Group MD9238E12B-FSR	Ball	12 VDC	166.9 Pa	0.67 in H2O	38 mm	CE TUV UL	2 Wire Leads	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	1 A	110.6 CFM	3.1 m³/min	55 dB	4800 RPM	Tubeaxial
Mechatronics Bearing Group MD9238E24B-FSR-L9.5	Ball	24 VDC	166.9 Pa	0.67 in H2O	38 mm	CE TUV UL	2 Wire Leads	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.5 A	110.6 CFM	3.1 m³/min	55 dB	4800 RPM	Tubeaxial
Mechatronics Bearing Group MD9238L24B1-FSR	Ball	24 VDC	77.2 Pa	0.31 in H2O	38 mm	CE TUV UL	3 Wire Leads	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.19 A	71 CFM	1.99 mł/min	44.5 dB	3200 RPM	Tubeaxial
Mechatronics Bearing Group MD9238X24B-FSR-CC	Ball	24 VDC	209.2 Pa	0.84 in H2O	38 mm	CE TUV UL	2 Wire Leads	Conformal Coating Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.7 A	123.6 CFM	3.46 m³/min	58.4 dB(A)	5400 RPM	Tubeaxial
Mechatronics Bearing Group MD9238H48B-FSR-CC	Ball		149.5 Pa	0.6 in H2O	38 mm	CE TUV UL	2 Wire Leads	Conformal Coating Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.22 A	100.7 CFM	2.82 m³/min	53.5 dB	4400 RPM	Tubeaxial	48 VDC
Mechatronics Bearing Group MD9238X24B-FSR	Ball	24 VDC	209.2 Pa	0.84 in H2O	38 mm	CE TUV UL	2 Wire Leads	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.7 A	123.6 CFM	3.46 m³/min	58.4 dB(A)	5400 RPM	Tubeaxial
Mechatronics Bearing Group MD9238H48B-FSR	Ball		149.5 Pa	0.6 in H2O	38 mm	CE TUV UL	2 Wire Leads	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.22 A	100.7 CFM	2.82 m³/min	53.5 dB	4400 RPM	Tubeaxial	48 VDC
Mechatronics Bearing Group MD9238H24B1-FSR	Ball	24 VDC	149.5 Pa	0.6 in H2O	38 mm	CE TUV UL	3 Wire Leads	Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	450 mA	100.7 CFM	2.82 m³/min	53.5 dB	4400 RPM	Tubeaxial
Mechatronics Bearing Group MD9238E24B-FSR	Ball	24 VDC	166.9 Pa	0.67 in H2O	38 mm	CE TUV UL	2 Wire Leads	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	180.08 g	0.397 lb	0.5 A	110.6 CFM	3.1 m³/min	55 dB	4800 RPM	Tubeaxial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.87
		10	$ 17.23
		25	$ 16.58
		50	$ 15.49
		100	$ 14.29
		250	$ 14.07
		500	$ 13.96

Description

General part information

MD9238 Series

Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 71.0 CFM (1.99m³/min) 3 Wire Leads
