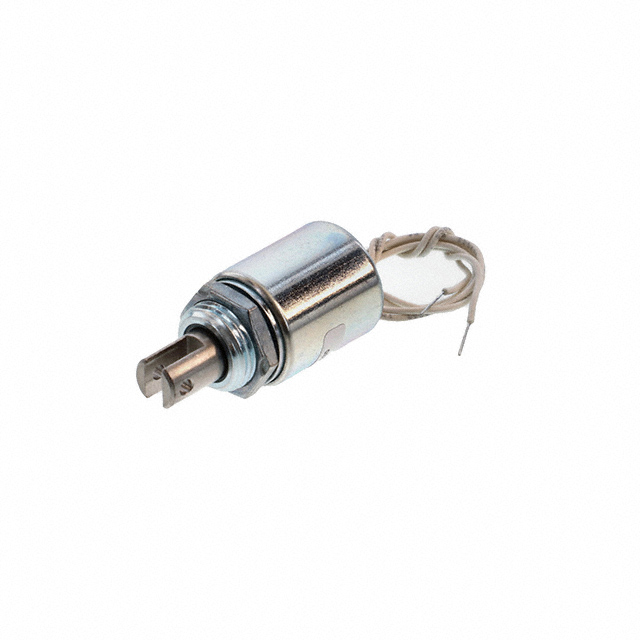

152099-230

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

TUBULAR SOLENOID STA PULL 1 X 1-

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

TUBULAR SOLENOID STA PULL 1 X 1-

Technical Specifications

Parameters and characteristics for this part

TUBULAR SOLENOID STA PULL 1 X 1-

Part	Technology	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Bushing Thread	Type	Termination Style	DC Resistance (DCR)	Shaft Detail	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]
Ledex Dormeyer Saia, a Division of Johnson Electric 152099-230	Electromechanical	1 in	25.4 mm	1.125 in	28.58 mm	3/4-16 UNF	Closed Frame (Pull), Tubular	Wire Leads	22.8 Ohm	Clevis	11.1 mm	0.437 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Duty Solenoid Closed Frame (Pull), Tubular Type Stroke Panel Mount
