Description
General part information

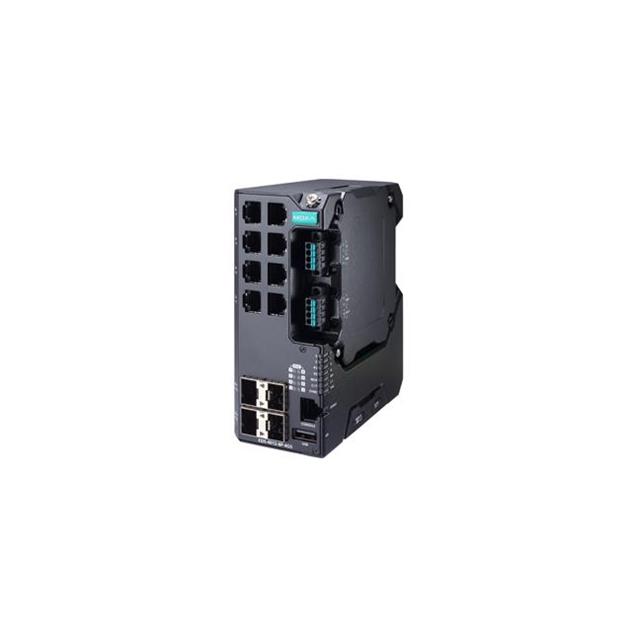

EDS-4012-8P-4GS-LVB
Network Switch - Managed 12 Ports IP40
Technical Specifications
Parameters and characteristics for this part
| Specification | EDS-4012-8P-4GS-LVB |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | RJ45, SFP |
| Copper Ports | 8 |
| Copper Type | 10/100 |
| Fiber Ports | 4 |
| Fiber Type | SFP |
| Ingress Protection | IP40 |
| Mounting Type | DIN Rail |
| Number of Ports | 12 |
| Operating Temperature (Max) | 60 °C, 75 °C |
| Operating Temperature (Min) | -10 °C, -40 °C |
| PoE Ports | 8 |
| SFP/XFP Ports (Count) | 4 |
| SFP/XFP Type | SFP |
| Type | Switch - Managed |
| Voltage - Input (Maximum) | 57 V |
| Voltage - Input (Minimum) | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
