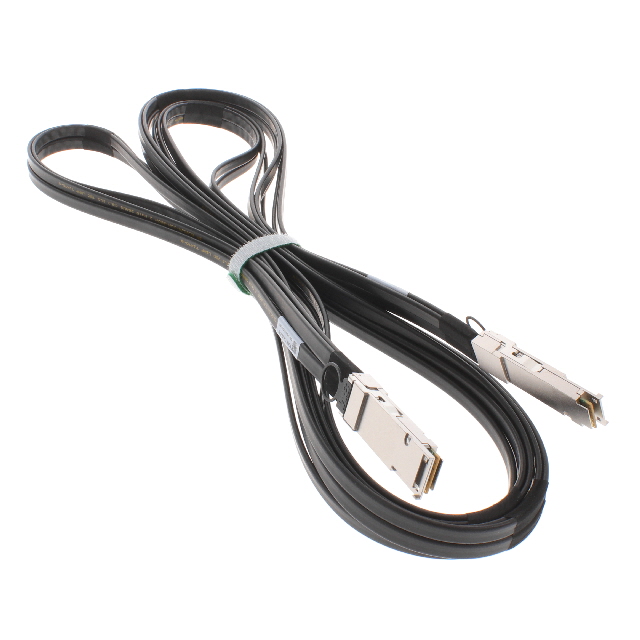

9QM6-114-22-3.00
Active3M (TC)
NETWORK CABLE, PULL TAB, QSFP28 PLUG TO QSFP28 PLUG, 3 M, 9.8 FT, BLACK, 9Q SERIES
Deep-Dive with AI
Search across all available documentation for this part.
9QM6-114-22-3.00
Active3M (TC)
NETWORK CABLE, PULL TAB, QSFP28 PLUG TO QSFP28 PLUG, 3 M, 9.8 FT, BLACK, 9Q SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9QM6-114-22-3.00 |
|---|---|
| Cable Connectors | QSFP28 |
| Cable Type | Twin Axial, Flat |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Latch Lock |
| Features | Pull Tab |
| Frequency - Max [Max] | 100 Gbps |
| Gender | Male to Male |
| Length [x] | 9.84 ft |
| Length [x] | 3 m |
| Number of Positions | 38 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Shielding | Shielded |
| Usage | External |
| Wire Gauge | 26 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
9QM6 Series
38 Position QSFP28 Plug to Plug 9.84' (3.00m) Black Shielded
