DSF050J223
ObsoleteCornell Dubilier Knowles
CAP FILM 0.022UF 5% 50VDC RADIAL
DSF050J223
ObsoleteCornell Dubilier Knowles
CAP FILM 0.022UF 5% 50VDC RADIAL
Description
General part information
DSF050J223

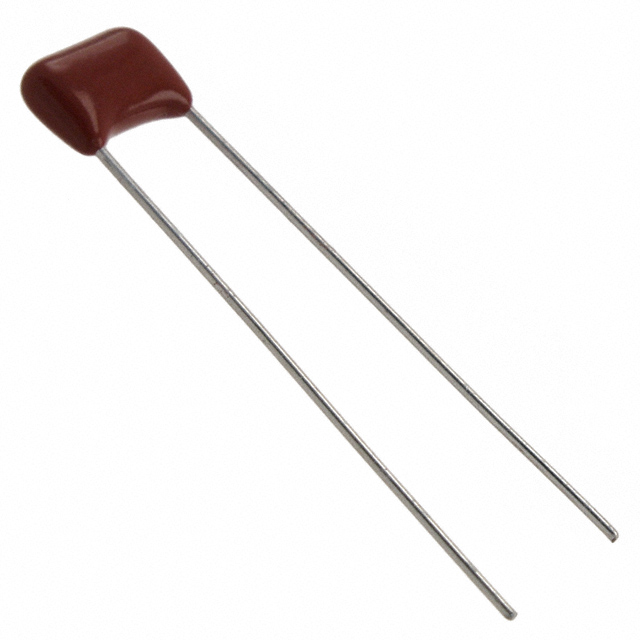

0.022 µF Film Capacitor 50V Polyester, Metallized - Stacked Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DSF050J223 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.022 µF |
| Dielectric Material | Metallized - Stacked, Polyester |
| Height - Seated (Max) | 0.236 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.126 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - DC | 50 V |
