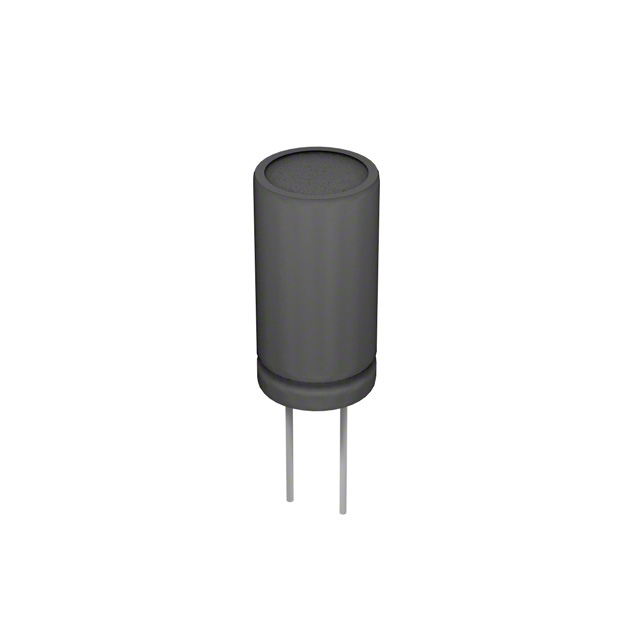

Specification	SN102M6R3ST

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	320 mOhm
Height - Seated (Max)	0.984 in
Lead Spacing	0.197 in
Lifetime	1000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can, Radial
Polarization	Bi-Polar
Ripple Current	690 mA
Size / Dimension Diameter	0.512 in
Tolerance	20 %
Voltage - Rated	6.3 V
