SCNRF-6AAN-SAFS
ActiveSuntsu Electronics, Inc

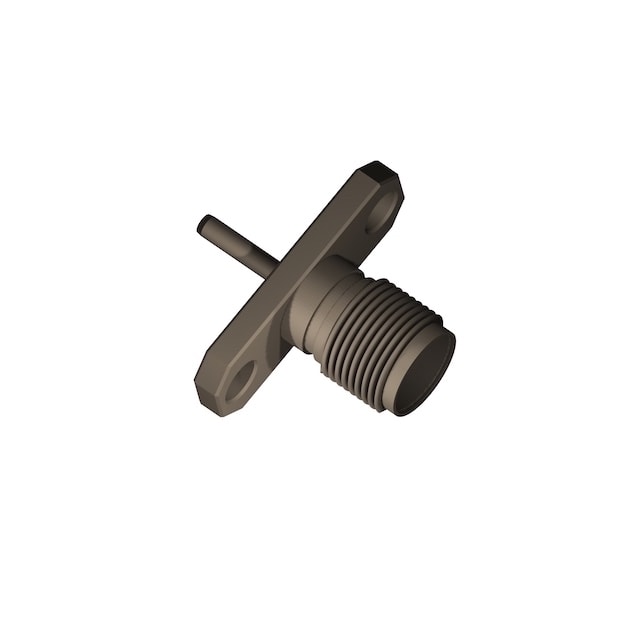

CONN SMA JACK STR 50 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCNRF-6AAN-SAFS
ActiveSuntsu Electronics, Inc
CONN SMA JACK STR 50 OHMS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SCNRF-6AAN-SAFS | SCNRF-6AAN Series |
|---|---|---|
| Body Finish | Gold | Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Beryllium Copper | Beryllium Copper, Copper Alloy |
| Center Contact Plating | Gold | Gold |
| Connector Style | SMA | SMA, IPEX MHFI, Ultra Miniature (UM) |
| Connector Type | Female Socket, Jack | Female Socket, Jack |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Fastening Type | - | Snap-On |
| Features | Extended Insulation | Extended Insulation |
| Frequency - Max [Max] | 6000 MHz | 6000 MHz |
| Housing Color | Gold | Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Mounting Feature | Flange | Flange |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 - 90 °C |
| Operating Temperature [Min] | -55 °C | -55 - -40 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 335 V | 200 - 335 V |
SCNRF-6AAN Series
CONN SMA JACK STR 50 OHMS
| Part | Connector Style | Shield Termination | Dielectric Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Center Contact Material | Connector Type | Impedance | Housing Color | Voltage Rating | Body Material | Body Finish | Center Contact Plating | Mounting Feature | Frequency - Max [Max] | Contact Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Suntsu Electronics, Inc SCNRF-6AAN-SAFS | SMA | Solder | Polytetrafluoroethylene (PTFE) | Extended Insulation | 85 °C | -55 °C | 1 | Beryllium Copper | Female Socket, Jack | 50 Ohms | Gold | 335 V | Brass | Gold | Gold | Flange | 6000 MHz | Solder | |
Suntsu Electronics, Inc SCNRF-6AAN-P1FS | IPEX MHFI, Ultra Miniature (UM) | Solder | 90 °C | -40 °C | 1 | Copper Alloy | Female Socket, Jack | 50 Ohms | Gold | 200 V | Brass | Gold | Gold | 6000 MHz | Solder | Snap-On |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.24 | |
| 10 | $ 6.13 | |||
| 25 | $ 6.07 | |||
| 50 | $ 5.98 | |||
| 100 | $ 5.42 | |||
Description
General part information
SCNRF-6AAN Series
SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
