FMCA3089-48
ObsoleteFairview Microwave

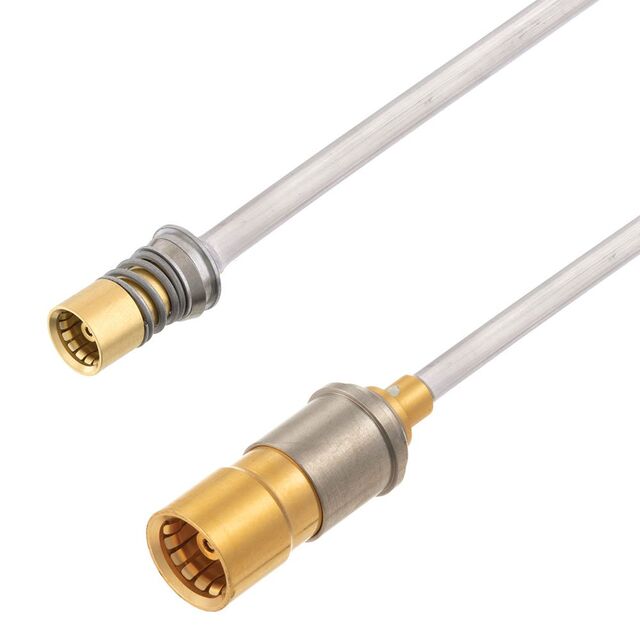

COAX CABLE BMA TO BMA 4'
FMCA3089-48
ObsoleteFairview Microwave
COAX CABLE BMA TO BMA 4'
Description
General part information
FMCA3089-48
Cable Assembly Coaxial BMA to BMA Hand Formable .047 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3089-48 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 20 Gbps |
| Length | 48 in |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | BMA |
