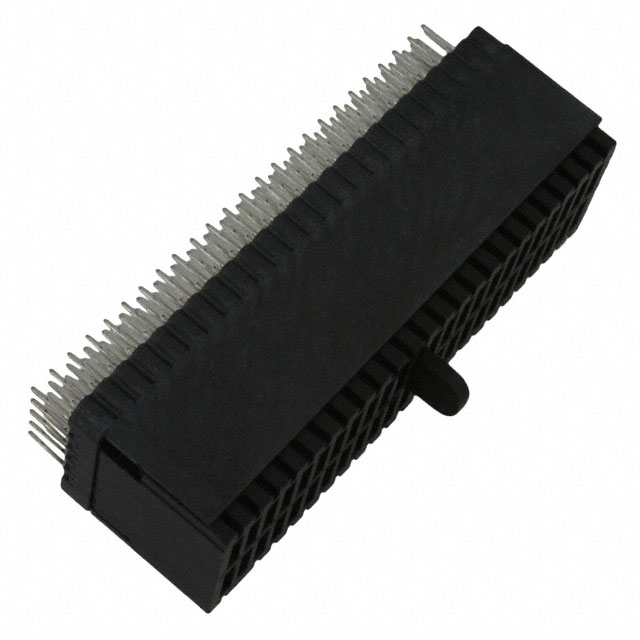

HSHM-H125B4-5CP1-TR40B
Active3M
CONN HEADER 125POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSHM-H125B4-5CP1-TR40B
Active3M
CONN HEADER 125POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HSHM-H125B4-5CP1-TR40B | HSHM-H125 Series |
|---|---|---|
| Connector Style | B 25 | B 25 |
| Connector Type | Header, Male Pins | Header, Male Pins |
| Connector Usage | Backplane | Backplane |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.127 µm | 0.127 - 0.76 µm |
| Contact Finish Thickness | 5 µin | 5 - 30 µin |
| Current Rating (Amps) | 1 A | 1 A |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 125 | 125 |
| Number of Positions Loaded | All | All |
| Number of Rows | 5 | 5 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
HSHM-H125 Series
CONN HEADER 125POS 2MM PRESS-FIT
| Part | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Current Rating (Amps) | Mounting Type | Connector Type | Number of Rows | Termination | Number of Positions | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Connector Usage | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.127 µm | 5 µin | 0.079 in | 2 mm | 1 A | Through Hole | Header, Male Pins | 5 | Press-Fit | 125 | Gold | -55 °C | 125 °C | All | Backplane | B 25 | |
0.76 Ám | 30 Áin | 0.079 in | 2 mm | 1 A | Through Hole | Header, Male Pins | 5 | Press-Fit | 125 | Gold | -55 °C | 125 °C | All | Backplane | B 25 | |
0.76 Ám | 30 Áin | 0.079 in | 2 mm | 1 A | Through Hole | Header, Male Pins | 5 | Press-Fit | 125 | Gold | -55 °C | 125 °C | All | Backplane | B 25 | |
0.76 Ám | 30 Áin | 0.079 in | 2 mm | 1 A | Through Hole | Header, Male Pins | 5 | Press-Fit | 125 | Gold | -55 °C | 125 °C | All | Backplane | B 25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HSHM-H125 Series
125 Position Header, Male Pins Connector 0.079" (2.00mm) Through Hole
