1000146

Active

KYOCERA AVX

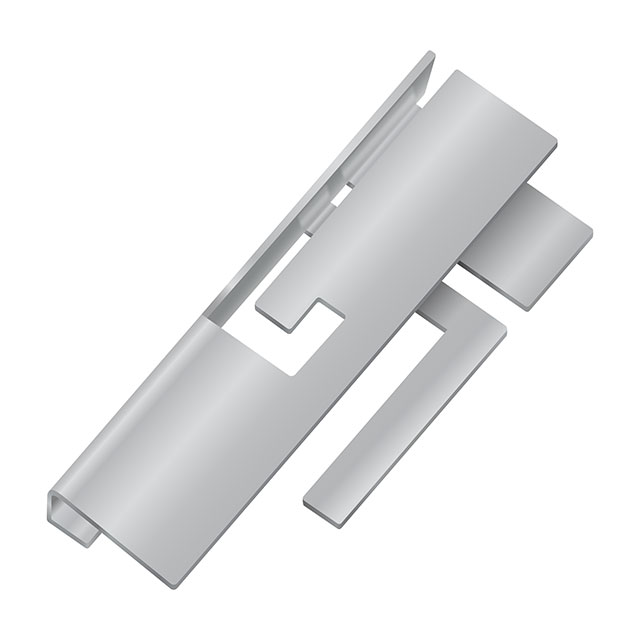

RF ANT 2.4GHZ/4.9GHZ STAMPED MET

Search across all available documentation for this part.

Active

KYOCERA AVX

RF ANT 2.4GHZ/4.9GHZ STAMPED MET

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal Solder Surface Mount

Technical documentation and resources

Specification	1000146	1000146 Series

Antenna Type	Stamped Metal	Stamped Metal
Applications	WLAN, Bluetooth, Wi-Fi, Zigbee™	WLAN, Bluetooth, Wi-Fi, Zigbee™
For Use With/Related Products	-	1000146
Frequency	-	3.8 GHz
Frequency	-	3.3 GHz
Frequency (Center/Band)	2.4 GHz, 5.8 GHz, 4.9 GHz, 5.2 GHz	2.4 - 5.8 GHz
Frequency Group	4 GHz	4 GHz
Frequency Group [Max]	3 GHz	3 GHz
Frequency Group [Min]	2 GHz	2 GHz
Frequency Range [Max]	5.9 GHz, 2.49 GHz, 5.35 GHz	2.49 - 5.9 GHz
Frequency Range [Min]	2.39 GHz, 5.7 GHz, 4.9 GHz	2.39 - 5.7 GHz
Gain	2.5 dBi, 3.5 dBi	2.5 - 3.5 dBi
Height (Max) [Max]	0.169 in	0.169 in
Height (Max) [Max]	4.3 mm	4.3 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	4	4
RF Family/Standard	WiFi, Bluetooth, 802.15.4	WiFi, Bluetooth, 802.15.4
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	1.5, 1.3, 1.8, 1.6	1.3 - 1.8

Part	Supplied Contents	Frequency [Max]	Frequency [Min]	For Use With/Related Products	Type	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Frequency (Center/Band)	Height (Max) [Max]	Height (Max) [Max]	Frequency Group	Frequency Group [Min]	Frequency Group [Max]	Gain	Applications	VSWR	RF Family/Standard	Mounting Type	Number of Bands	Termination
KYOCERA AVX 1000146-03	Board(s)	3.8 GHz	3.3 GHz	1000146	Antenna
KYOCERA AVX 1000146						Stamped Metal	2.49 GHz, 5.35 GHz, 5.9 GHz	2.39 GHz, 4.9 GHz, 5.7 GHz	2.4 GHz, 4.9 GHz, 5.2 GHz, 5.8 GHz	0.169 in	4.3 mm	4 GHz	2 GHz	3 GHz	2.5 dBi, 3.5 dBi	Bluetooth, Wi-Fi, WLAN, Zigbee™	1.3, 1.5, 1.6, 1.8	802.15.4, Bluetooth, WiFi	Surface Mount	4	Solder
