Description
General part information

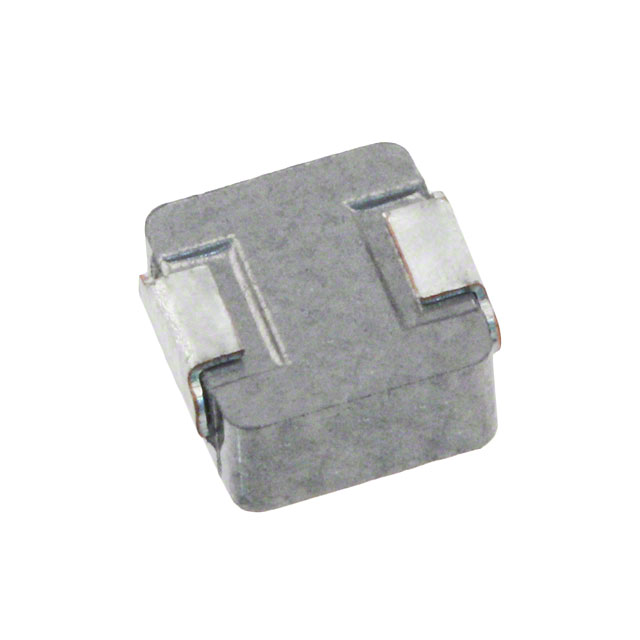

PCMB104T-2R0MS
2 µH Unshielded Inductor 14 A 5.8mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PCMB104T-2R0MS |
|---|---|
| Current - Saturation (Isat) | 14 A |
| Current Rating | 14 A |
| DC Resistance (DCR) (Max) | 5.8 mOhm |
| Height - Seated (Max) | 0.15 in |
| Inductance | 2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.433 in |
| Size / Dimension Width | 0.394 in |
| Tolerance | 20 % |
