P2503
ActiveTPI (Test Products Int)
OSCOPE PROBE X100 250MHZ 100M
P2503
ActiveTPI (Test Products Int)
OSCOPE PROBE X100 250MHZ 100M
Description
General part information
P2503

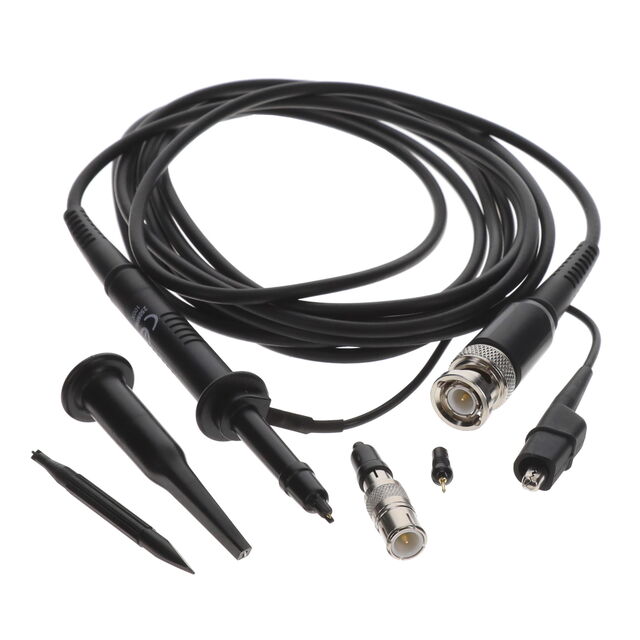

100:1 Passive 250MHz 118.000" (2997.20mm) Oscilloscope Probe Test Lead 100M Input Resistance CAT II 1500V
Technical Specifications
Parameters and characteristics for this part
| Specification | P2503 |
|---|---|
| Attenuation Value | 100 :1 |
| Bandwidth | 250 MHz |
| Cable Length | 118 in |
| Capacitance - Input | 6.5 pF |
| Resistance - Input | 100 MOhm |
| Type | Passive |
| Voltage - Max (CAT II) | 1500 V |
| Voltage - Max Category | CAT II |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
