0800527:/
ActivePhoenix Contact

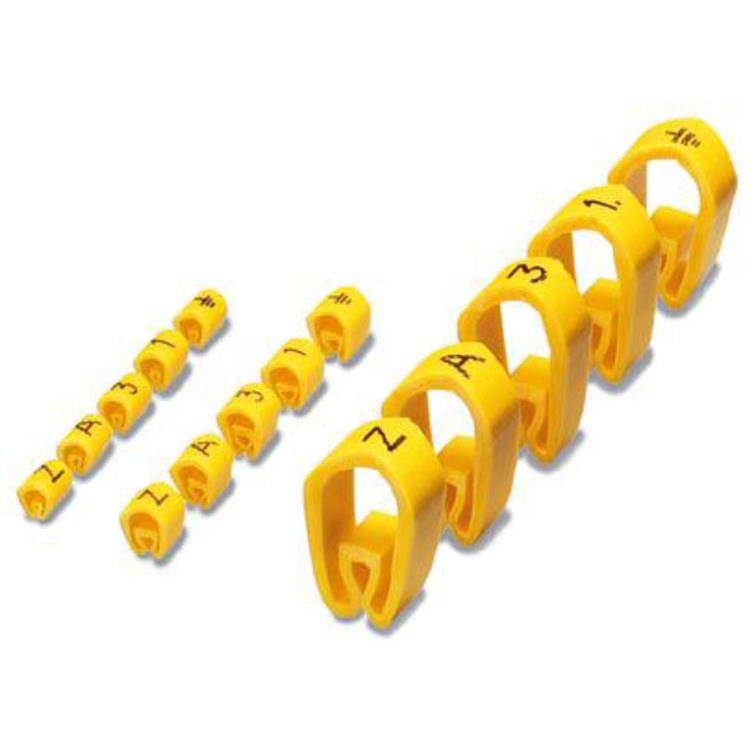

WIRE MARKER SLIP-ON 4.3MM YELLOW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0800527:/
ActivePhoenix Contact
WIRE MARKER SLIP-ON 4.3MM YELLOW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0800527:/ | 0800527 Series |
|---|---|---|
| Cable Diameter [Max] [diameter] | 0.236 in | 0.236 in |
| Cable Diameter [Max] [diameter] | 6 mm | 6 mm |
| Cable Diameter [Min] [diameter] | 0.118 in | 0.118 in |
| Cable Diameter [Min] [diameter] | 3 mm | 3 mm |
| Color | Yellow | Yellow |
| Legend | Symbols | L1, Symbols, PE, WSTR, SERD, ERDE, L2 |
| Material | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | Ethylene Vinyl Acetate Copolymer (EVA), Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -45 °C | -45 °C |
| Size | - | 0.26 in |
| Size | - | 6.6 mm |
| Size | - | 4.2 mm |
| Size | - | 0.17 in |
| Size [y] | 4.3 mm | 4.3 mm |
| Size [y] | 0.17 in | 0.17 in |
| Type | Wire Marker, Slip-On | Wire Marker, Slip-On |
0800527 Series
WIRE MARKER SLIP-ON YELLOW
| Part | Type | Color | Material | Cable Diameter [Max] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Min] [diameter] | Cable Diameter [Max] [diameter] | Legend | Operating Temperature [Min] | Operating Temperature [Max] | Size [y] | Size [y] | Size [custom] | Size [custom] | Size [custom] | Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 0800527:L1 | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA) | 0.236 in | 0.118 in | 3 mm | 6 mm | L1 | -45 °C | 70 °C | ||||||
Phoenix Contact 0800527:/ | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 0.236 in | 0.118 in | 3 mm | 6 mm | Symbols | -45 °C | 70 °C | 4.3 mm | 0.17 in | ||||
Phoenix Contact 0800527:PE | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA) | 0.236 in | 0.118 in | 3 mm | 6 mm | PE | -45 °C | 70 °C | ||||||
Phoenix Contact 0800527:+ | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA) | 0.236 in | 0.118 in | 3 mm | 6 mm | -45 °C | 70 °C | |||||||
Phoenix Contact 0800527:WSTR | Wire Marker, Slip-On | Yellow | 0.236 in | 0.118 in | 3 mm | 6 mm | WSTR | 4.3 mm | 0.17 in | |||||||
Phoenix Contact 0800527:- | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA) | 0.236 in | 0.118 in | 3 mm | 6 mm | -45 °C | 70 °C | |||||||
Phoenix Contact 0800527:SERD | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 0.236 in | 0.118 in | 3 mm | 6 mm | SERD | -45 °C | 70 °C | ||||||
Phoenix Contact 0800527:ERDE | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 0.236 in | 0.118 in | 3 mm | 6 mm | ERDE | -45 °C | 70 °C | ||||||
Phoenix Contact 0800527:. | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 0.236 in | 0.118 in | 3 mm | 6 mm | -45 °C | 70 °C | 0.26 in | 6.6 mm | 4.2 mm | 0.17 in | |||
Phoenix Contact 0800527:: | Wire Marker, Slip-On | Yellow | Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free | 0.236 in | 0.118 in | 3 mm | 6 mm | Symbols | -45 °C | 70 °C | 4.3 mm | 0.17 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.05 | |
Description
General part information
0800527 Series
Wire Marker, Slip-On 0.17" W (4.3mm) Yellow Ethylene Vinyl Acetate Copolymer (EVA), Halogen Free
