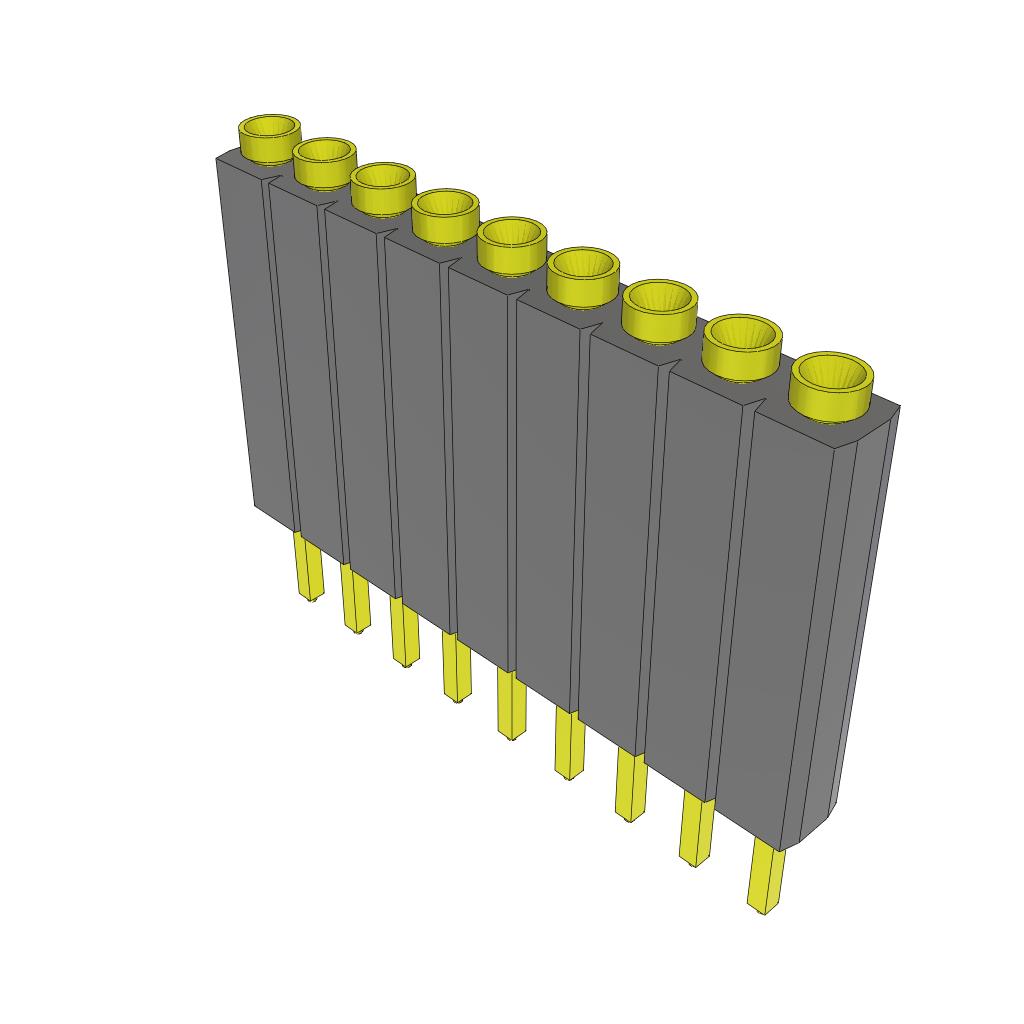

ESS-109-TT-05

Active

Samtec Inc.

CONN SOCKET 9POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESS Datasheet Datasheet

ESS-109-TT-05

Active

Samtec Inc.

CONN SOCKET 9POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsESS Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESS-109-TT-05

Connector Type	Elevated Socket
Contact Finish - Post	Tin
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.5 in
Insulation Height	12.7 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

ESS-109 Series

Part	Material Flammability Rating	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Color	Number of Rows	Number of Positions	Contact Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Termination	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. ESS-109-G-24	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull	10 çin	0.25 çm	Beryllium Copper	Through Hole	Elevated Socket	10 çin	0.25 çm	Gold	Solder	0.4 in	10.16 mm	3.12 mm	0.123 in	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold
Samtec Inc. ESS-109-TT-25	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull			Beryllium Copper	Through Hole	Elevated Socket			Tin	Solder	0.5 in	12.7 mm			Liquid Crystal Polymer (LCP)	-55 °C	125 °C		0.173 in	4.4 mm
Samtec Inc. ESS-109-G-25	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull	10 çin	0.25 çm	Beryllium Copper	Through Hole	Elevated Socket	10 çin	0.25 çm	Gold	Solder	0.5 in	12.7 mm			Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.173 in	4.4 mm
Samtec Inc. ESS-109-G-04	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull	10 çin	0.25 çm	Beryllium Copper	Through Hole	Elevated Socket	10 çin	0.25 çm	Gold	Solder	0.4 in	10.16 mm	3.12 mm	0.123 in	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold
Samtec Inc. ESS-109-TT-05	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull			Beryllium Copper	Through Hole	Elevated Socket			Tin	Solder	0.5 in	12.7 mm			Liquid Crystal Polymer (LCP)	-55 °C	125 °C		0.173 in	4.4 mm
Samtec Inc. ESS-109-TT-03-L	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull			Beryllium Copper	Through Hole	Elevated Socket			Tin	Press-Fit Solder			3.12 mm	0.123 in	Liquid Crystal Polymer (LCP)	-55 °C	125 °C				0.3 in	7.62 mm
Samtec Inc. ESS-109-TT-06	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull			Beryllium Copper	Through Hole	Elevated Socket			Tin	Solder					Liquid Crystal Polymer (LCP)	-55 °C	125 °C		0.215 in	5.46 mm	0.3 in	7.62 mm
Samtec Inc. ESS-109-T-05	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull	10 çin	0.25 çm	Beryllium Copper	Through Hole	Elevated Socket			Tin	Solder	0.5 in	12.7 mm			Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.173 in	4.4 mm
Samtec Inc. ESS-109-T-06	UL94 V-0	Circular	0.1 in	2.54 mm	All	Black	1	9	Female Socket	Push-Pull	10 çin	0.25 çm	Beryllium Copper	Through Hole	Elevated Socket			Tin	Solder					Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	0.215 in	5.46 mm	0.3 in	7.62 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.07

Description

General part information

ESS-109 Series

9 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Tin

Documents

Technical documentation and resources

ESS Datasheet

Datasheet
