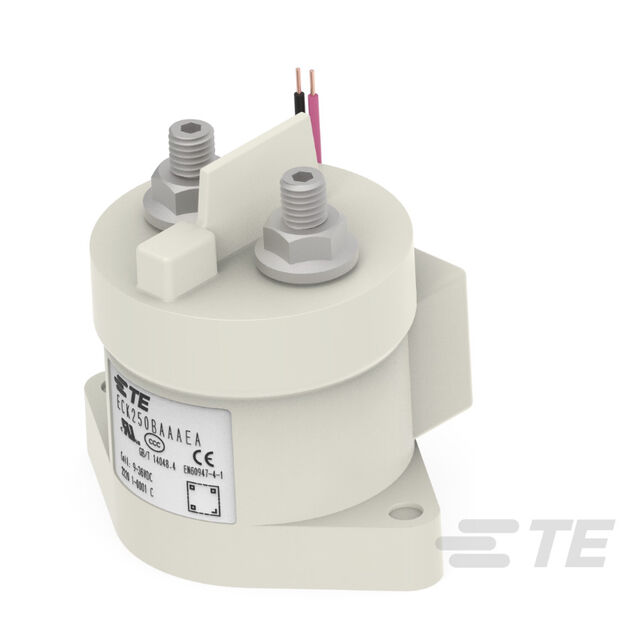

2-2071576-1

2-2071576-1

Active
TE Connectivity AMP Connectors

CONTACTOR, SPST-NO-DM, 500A, 36V, FLANGE ROHS COMPLIANT: YES

Find alt
2-2071576-1

2-2071576-1

Active
TE Connectivity AMP Connectors

CONTACTOR, SPST-NO-DM, 500A, 36V, FLANGE ROHS COMPLIANT: YES

Find alt

Description

General part information

2-2071576-1

General Purpose Contactor, DC, 1 Form X SPST-NO-DM, 500 A Contact Rating, 36 VDC Coil Voltage, 1.7 W Coil Power, Panel Mount, ECK250B Series

Technical Specifications

Parameters and characteristics for this part

Specification2-2071576-1
Coil Voltage (Max)36 VDC
Coil Voltage (Min)9 VDC
Contact FormForm, X, 1, SPST-NO, DM
Contact Rating (Current)250 A
FeaturesHermetically, Economizer, Sealed
Mounting TypeChassis Mount
Must Operate Voltage9 VDC
Must Release Voltage3 VDC
Operate Time30 ms
Operating Temperature (Max)85 °C
Operating Temperature (Min)-40 °C
Release Time10 ms
Switching Voltage DC (Max)1000 VDC
Termination StyleWire Leads, Stud
