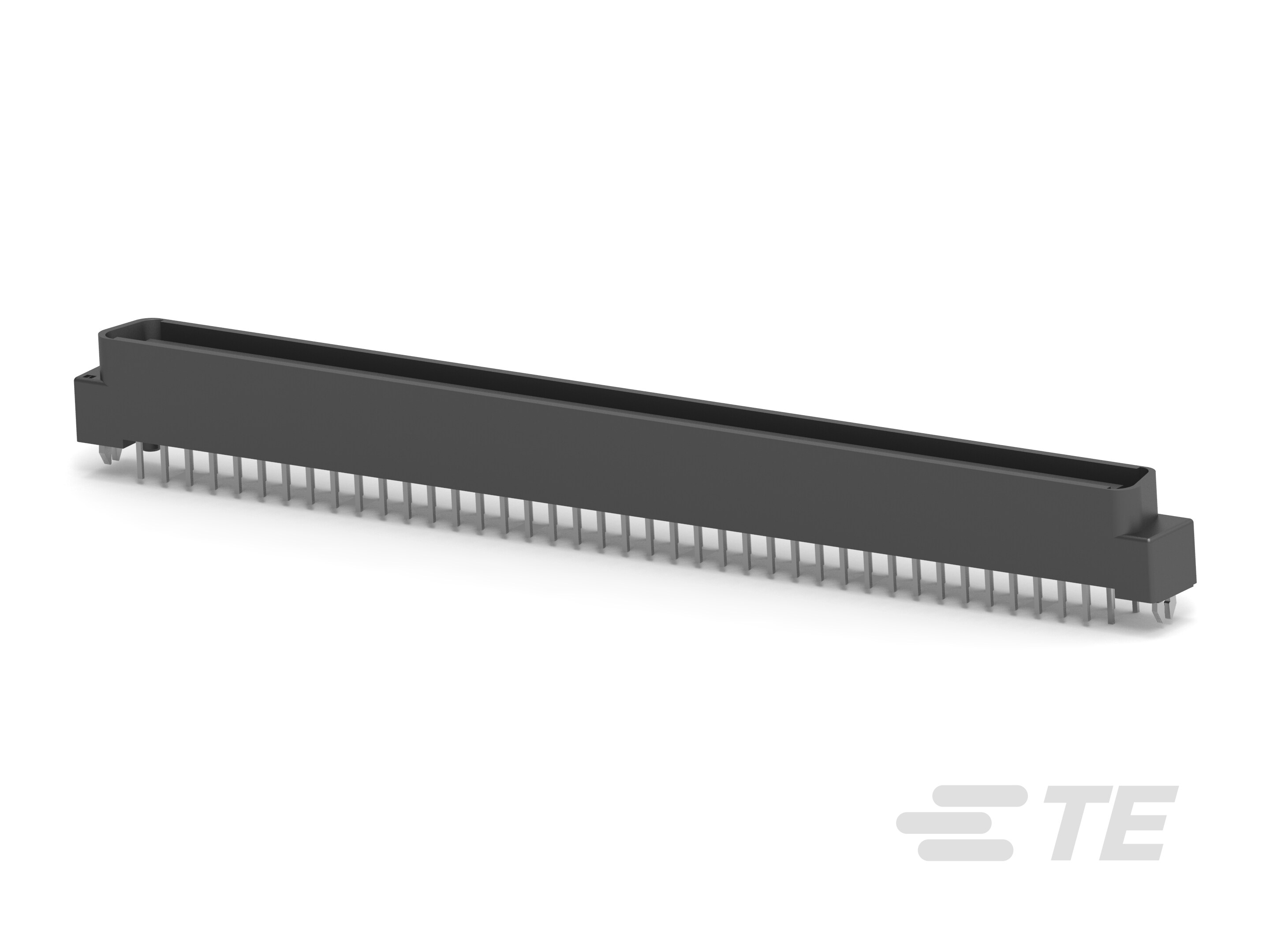

1-1734100-6
ActiveTE Connectivity AMP Connectors
BOARD TO BOARD & MEZZANINE CONNECTORS VERT 160 POS 30U AU
1-1734100-6
ActiveTE Connectivity AMP Connectors
BOARD TO BOARD & MEZZANINE CONNECTORS VERT 160 POS 30U AU
Description
General part information
CHAMP .050 Series I Series
PCB Mount Header, Vertical, Board-to-Board, 160 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold Flash, CHAMP .050 Series I
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1734100-6 |
|---|---|
| Connector Style | Center Strip Contacts |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Features | Board Lock |
| Mounting Type | Through Hole |
| Number of Positions | 160 |
| Number of Rows | 2 |
| Termination | Solder |
| Type | Board to Board |
