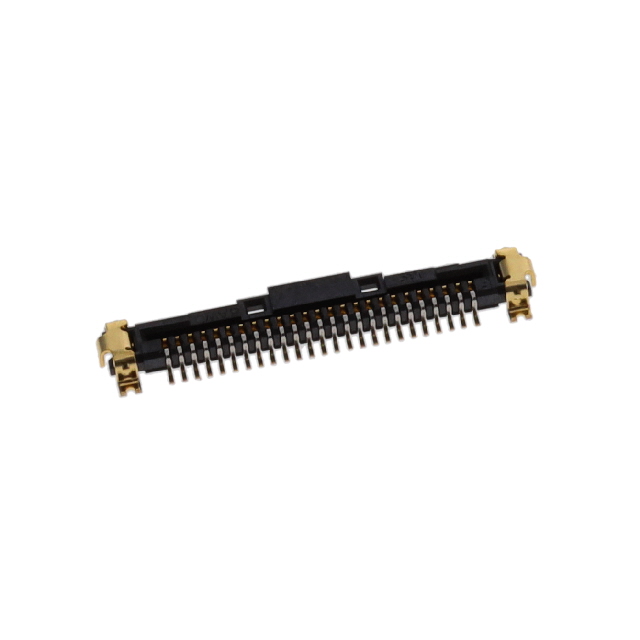

Specification	DF36-25S-0.4V(51)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Post	3.9 µin
Contact Material	Phosphor Bronze
Contact Type	Center Strip Contact
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.059 in
Insulation Material	Halogen Free, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	25
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-35 °C
Pitch - Mating	0.016 in
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	30 V

DF36 Series

Part	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Cable Termination	Mounting Type	Number of Positions	Pitch	Color	Contact Finish	Wire Type	Connector Type	Number of Rows	Contact Type	Fastening Type	Accessory Type	For Use With/Related Products	Height Above Board	Features	Contact Finish - Post	Insulation Height	Pitch - Mating	Style	Material Flammability Rating	Contact Finish - Mating	Insulation Color	Termination	Current Rating	Current Rating	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness - Mating	Number of Positions Loaded
Hirose Electric Co Ltd DF36-30P-0.4SD(55)	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	30	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-15P-SHL					15									Shield	DF36 Series
Hirose Electric Co Ltd DF36-50P-0.4SD(51)	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	50	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-40P-0.4SD	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	40	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-25P-0.4SD(55)	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	25	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-45P-0.4SD(55)	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	45	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-45P-0.4SD(51)	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	45	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-20P-0.4SD(55)	46 AWG	42 AWG	Solder	Free Hanging (In-Line)	20	0.016 in	Natural	Gold	Discrete	Plug	1	Outer Shroud Contact	Latch Holder
Hirose Electric Co Ltd DF36-15S-0.4V(55)				Surface Mount	15	0.016 in		Gold		Receptacle	1					0.059 in	Solder Retention
Hirose Electric Co Ltd DF36A-25S-0.4V(55)				Surface Mount	25					Receptacle	1	Center Strip Contact	Friction Lock				Metal Cover Solder Retention	Gold	0.059 in	0.016 in	Board Cable/Wire	UL94 V-0	Gold	Black	Solder	0 A	Varies by Wire Gauge	30 V	85 °C	-35 °C	12 µin	All
