Description
General part information

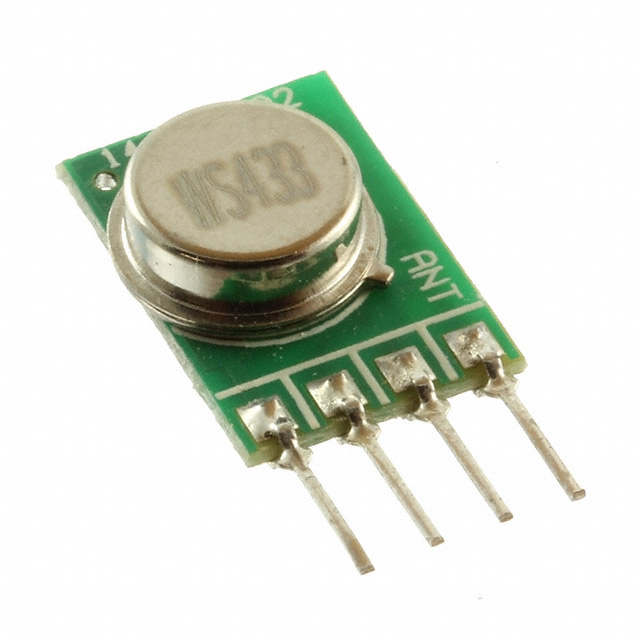

WRL-10534
RF Transmitter ASK 433.67MHz ~ 434.17MHz 14dBm 8kbps Antenna 4-SIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-10534 |
|---|---|
| Applications | Wireless Game Controllers, Remote Control, Remote Keyless Entry, RKE |
| Current - Transmitting | 8 mA |
| Data Rate (Max) | 8 kbps |
| Frequency (Max) | 434.17 MHz |
| Frequency (Min) | 433.67 MHz |
| Modulation or Protocol | ASK |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 4-SIP Module |
| Package Name | Module |
| Power - Output | 14 dBm |
| Voltage - Supply (Maximum) | 12 V |
| Voltage - Supply (Minimum) | 1.5 V |
