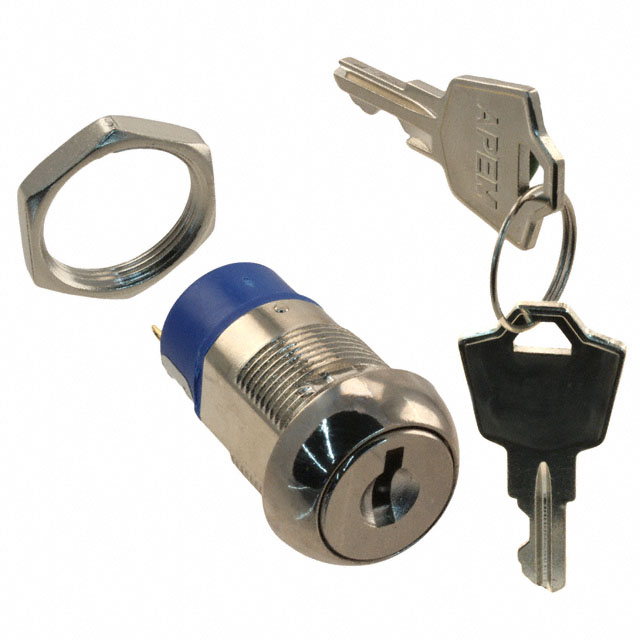

JD7510F
Keylock Switch 3 Position DP3T 4A (AC) 125 VAC DC Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | JD7510F |
|---|---|
| Actuator Type | Flat Key |
| Angle of Throw | 45 ° |
| Circuit | DP3T |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating | 4 A |
| Depth Behind Flange | 32.55 mm |
| Electrical Life (Cycles) | 6000 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 19 mm |
| Panel Cutout Shape | Circular |
| Removable Positions Count | 1 |
| Switch Function | Mom-On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
