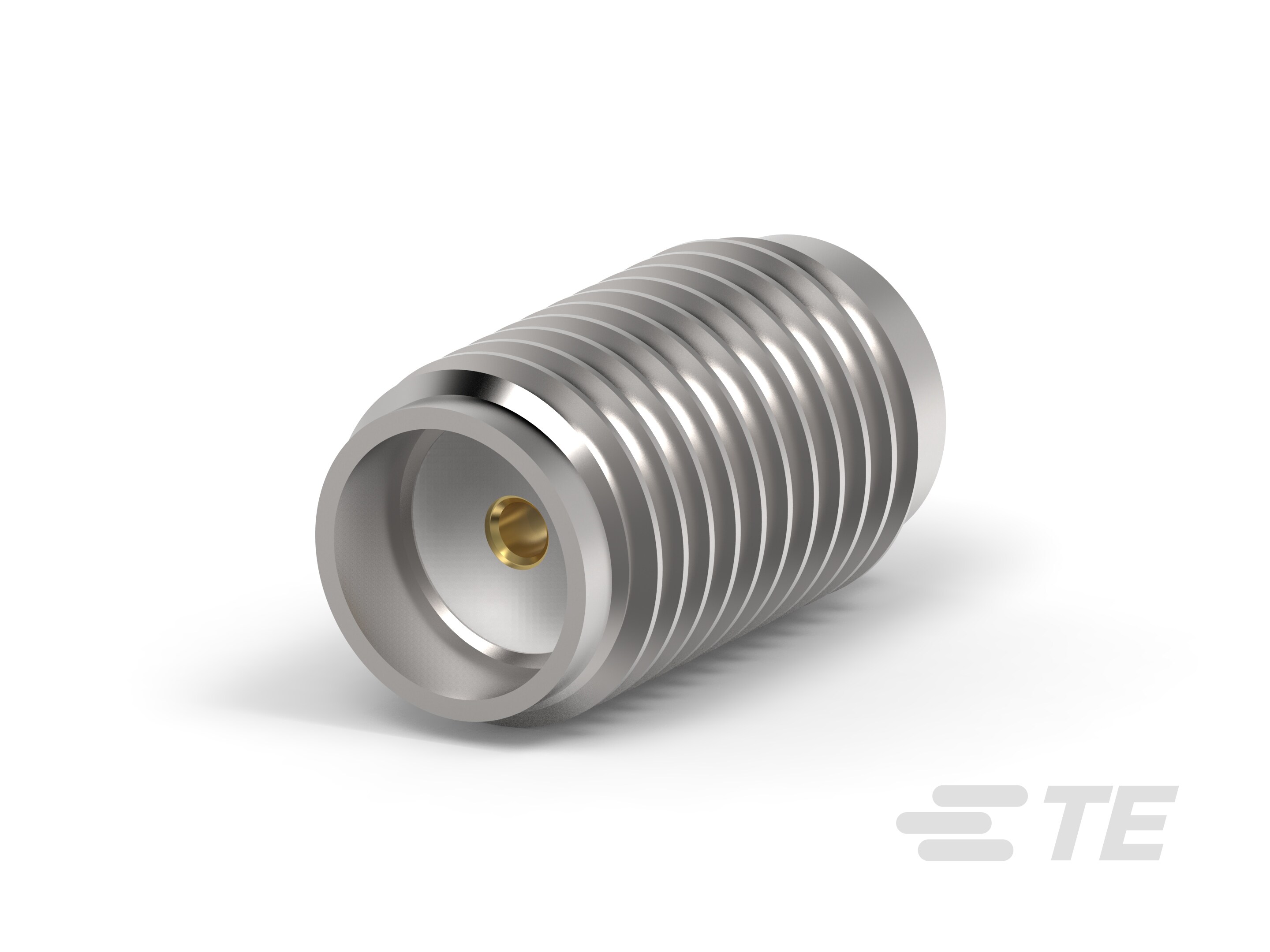

Specification	1053265-1

Center Contact Material	Beryllium Copper
Connector Style	SMA
Connector Type	Recepture, Female Socket
Contact Termination	Solder
Fastening Type	Threaded
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max	18 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Threaded, Panel Mount
Number of Ports	1
Shield Termination	Screw

SMA Series

...

Part	Number of Ports	Cable Group Diameter (Semi Rigid)	Cable Group	Frequency - Max	Impedance	Connector Style	Fastening Type	Shield Termination	Center Contact Material	Contact Termination	Housing Color	Mounting Type	Connector Type	Body Finish	Mating Cycles	Voltage Rating	Dielectric Material	Insertion Loss	Center Contact Plating	Body Material	Includes Total Count	Includes	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Feature	Style	Center Gender	Convert From (Adapter End)	Conversion Type	Adapter Series	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Adapter Type	Cable Group Current Rating	Features	For Use With/Related Products	Color	Accessory Type
TE Connectivity AMP Connectors 1050859-1	1	0.085 in	RG-405	18 GHz	50 Ohm	SMA	Threaded	Solder	Beryllium Copper	Solder	Gold	Free Hanging (In-Line)	Female Socket Jack	Gold	500 cycles	335 V	Polytetrafluoroethylene (PTFE)	0.3 dB	Gold	Stainless Steel	2 pcs	Connector Contact	105 °C	-65 °C
TE Connectivity AMP Connectors 1050548-1	1	0.085 in	RG-405	18 GHz	50 Ohm	SMA	Threaded	Solder	Beryllium Copper	Solder	Gold	Free Hanging (In-Line)	Male Pin Plug	Gold	500 cycles	335 V	Polytetrafluoroethylene (PTFE)		Gold	Stainless Steel	3 pcs	Connector Contact Insulator	105 °C	-65 °C
TE Connectivity AMP Connectors 1054986-1				12.4 GHz	50 Ohm		Threaded		Gold			Panel Mount					Tetrafluoroethylene (TFE)		Gold	Stainless Steel			165 °C	-65 °C	Bulkhead	Straight	Female	Female Socket SMA Jack	Same Series	SMA to SMA	Female Socket	SMA Jack	Jack to Jack
TE Connectivity AMP Connectors 1-1478908-0	1		316 RG-174A	18 GHz	50 Ohm	SMA	Threaded	Clamp	Brass	Solder	Gold	Free Hanging (In-Line)	Male Pin Plug																					188 A
TE Connectivity AMP Connectors 1883077-1				18 GHz	50 Ohm		Threaded					Panel Mount							Gold						Bulkhead	Straight	Female	Female Socket SMA Jack	Same Series	SMA to SMA	Female Socket	SMA Jack	Jack to Jack
TE Connectivity AMP Connectors 1056736-1						SMP														Stainless Steel															Full Detent Press-In	SMP Connectors	Silver	Shroud
TE Connectivity AMP Connectors 1-1478968-0	1			18 GHz	50 Ohm	SMA	Threaded	Solder	Beryllium Copper	Solder	Gold	Panel Mount	Female Socket Jack												Flange										Extended Insulation
TE Connectivity AMP Connectors SF29
TE Connectivity AMP Connectors 1-1478907-0	1		RG-58C	18 GHz	50 Ohm	SMA	Threaded	Clamp	Brass	Solder	Gold	Free Hanging (In-Line)	Male Pin Plug	Gold	500 cycles		Polytetrafluoroethylene (PTFE)		Gold	Stainless Steel	6 pcs	Braid Clamp Clamp Connector Contact Gasket Washer												141 A
TE Connectivity AMP Connectors 1-1478916-0	1		316 RG-174A	18 GHz	50 Ohm	SMA	Threaded	Crimp	Brass	Solder	Gold	Free Hanging (In-Line)	Male Pin Plug																					188 A
