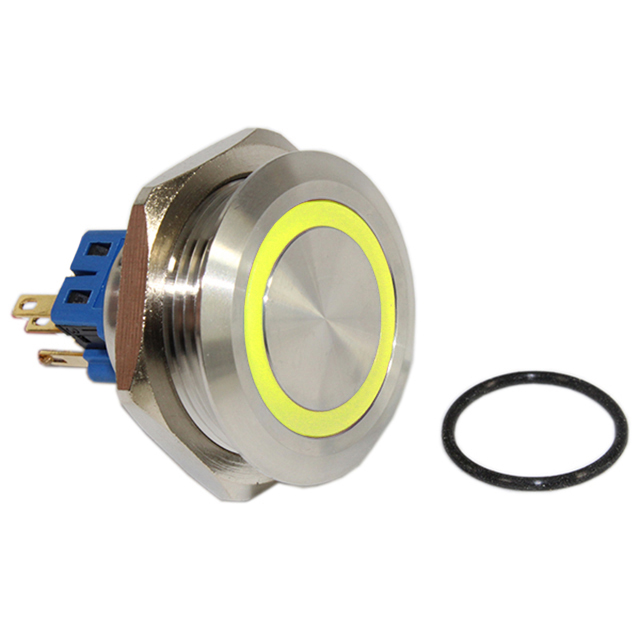

DH301NBSYN
ActiveCIT Relay and Switch
SWITCH PB DPST-NO/NC 2A 125V
DH301NBSYN
ActiveCIT Relay and Switch
SWITCH PB DPST-NO/NC 2A 125V
Description
General part information
DH301NBSYN
Pushbutton Switch SPST-NO + SPST-NC Anti-Vandal, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | DH301NBSYN |
|---|---|
| Actuator Type | Round, Flush, Button |
| Circuit | SPST-NC, SPST-NO |
| Color | Yellow |
| Color - Actuator/Cap | Silver |
| Current Rating | 2 A |
| Electrical Life (Cycles) | 50000 |
| Features | Stainless Steel |
| Illumination Type | LED |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Quick Connect, Solder |
| Type | Illuminated, Anti-Vandal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
