B37979G5102J000
ObsoleteEPCOS - TDK Electronics
CAP CER 1000PF 50V NP0 RADIAL
B37979G5102J000
ObsoleteEPCOS - TDK Electronics
CAP CER 1000PF 50V NP0 RADIAL
Description
General part information
B37979G5102J000

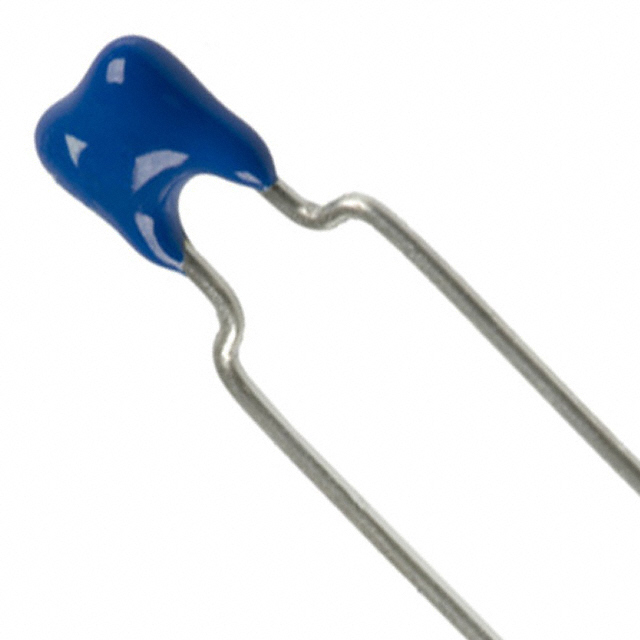

1000 pF ±5% 50V Ceramic Capacitor C0G, NP0 Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B37979G5102J000 |
|---|---|
| Applications | High Frequency, RF, Microwave |
| Capacitance | 1000 pF |
| Height - Seated (Max) | 0.217 in |
| Lead Spacing | 0.197 in |
| Lead Style | Formed Leads |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.197 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 50 V |
