57145-000
ActiveACTUATOR, FLANGE MOUNT, ALNICO 5, HAMLIN 59145 SERIES MAGNETIC SENSORS
57145-000
ActiveACTUATOR, FLANGE MOUNT, ALNICO 5, HAMLIN 59145 SERIES MAGNETIC SENSORS
Description
General part information
57145-000

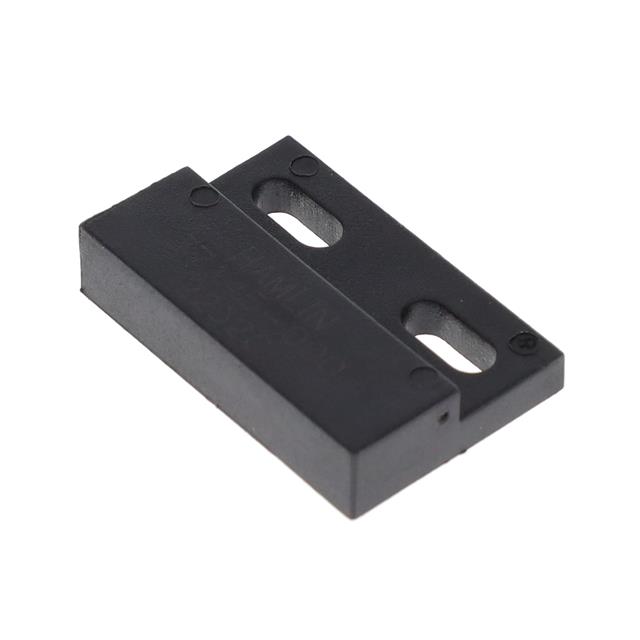

57145-000 is a 57145 series magnetic actuator for a flange mount sensor. This rectangular bare magnets and packaged actuator is ideally suited for mounting on a flat surface. It is suitable for use in a wide range of environments, including high-temperature applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | 57145-000 |
|---|---|
| For Use With/Related Products | 59145 |
| Housing Material | Plastic |
| Material - Magnet | Alnico 5 (AlNiCo) |
| Operating Temperature | 105 °C |
| Package / Case | Flange Mount |
| Size Height | 0.75 " |
| Size Length | 1.125 " |
| Size Width | 0.259 " |
