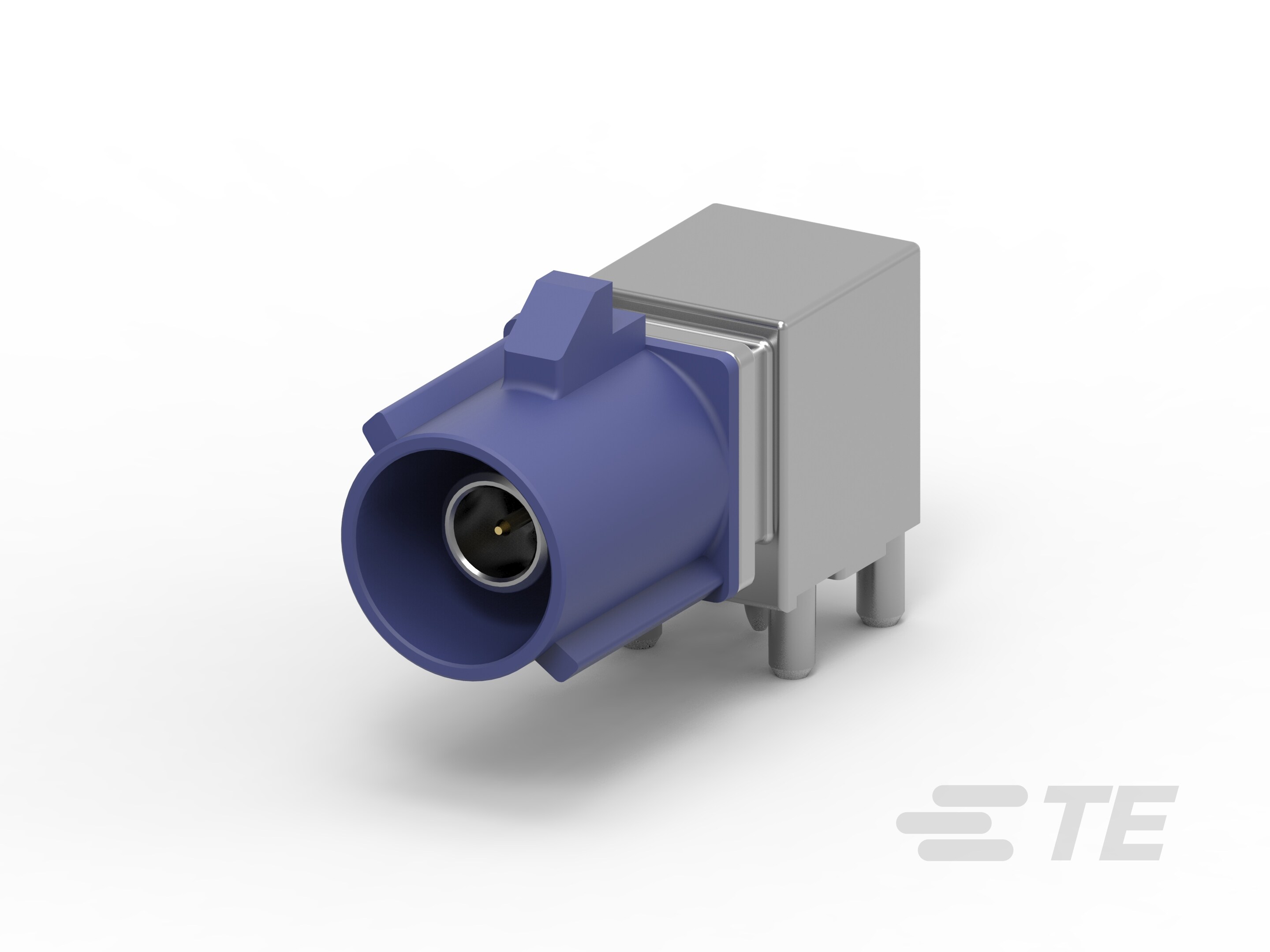

MALE ASM, 1 POS, R/A, PCB, FAKRA-2291392-3

2291392-3

Active
TE Connectivity AMP Connectors

MALE ASM, 1 POS, R/A, PCB, FAKRA

Find alt
MALE ASM, 1 POS, R/A, PCB, FAKRA-2291392-3

2291392-3

Active
TE Connectivity AMP Connectors

MALE ASM, 1 POS, R/A, PCB, FAKRA

Find alt

Description

General part information

FAKRA RF Connector System Series

Wire-to-Board, Horizontal, 1 Position, Board Mount, D Code, Signal, -40 – 105 °C [-40 – 221 °F], FAKRA RF Connector System, Data Connectivity Headers

Technical Specifications

Parameters and characteristics for this part

Specification2291392-3
Center Contact MaterialBrass
Connector StyleFakra, SMB
Connector TypeMale Pin, Plug
Contact TerminationSolder
Fastening TypeLocking Ramp
FeaturesCode C
Frequency - Max6000 MHz
Housing ColorSignal, Blue
Impedance50 Ohm
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
