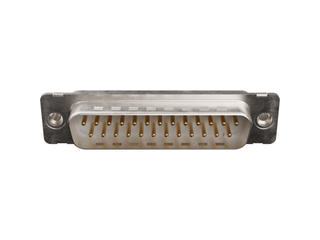

FCT STANDARD-DENSITY D-SUB CONNECTOR, MALE, STRAIGHT, PCB THROUGH HOLE, 9.20MM TAIL LENGTH, GOLD PLATING, 200 MATING CYCLES, 5.60MM SNAP-IN BOLT, 25 CIRCUITS, WHITE INSULATOR

Find alt

Alpha

1731090797

Active

Molex

FCT STANDARD-DENSITY D-SUB CONNECTOR, MALE, STRAIGHT, PCB THROUGH HOLE, 9.20MM TAIL LENGTH, GOLD PLATING, 200 MATING CYCLES, 5.60MM SNAP-IN BOLT, 25 CIRCUITS, WHITE INSULATOR

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

173109 Series

FCT Standard-Density D-Sub Connector, Male, Straight, PCB Through Hole, 10.30mm Tail Length, Gold Plating, 200 Mating Cycles, 6.30mm #4-40 Front Spacer, 6.50mm M3 Rear Spacer, 15 Circuits, White Insulator

Technical Specifications

Parameters and characteristics for this part

Specification	1731090797

Connector Layout	DB, B
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Type	Signal
Current Rating	5 A
Features	Board Lock
Finish	Tin Plated
Flange Feature	Board Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	25
Number of Rows	2
Primary Material	Metal
Shell Material	Steel
Shell Size	3
Termination	Solder

173109 Series

...

Part	Shell Size	Connector Layout	Current Rating	Flange Feature	Contact Finish	Finish	Shell Material	Termination	Number of Rows	Connector Type	Contact Type	Connector Style	Mounting Type	Number of Positions	Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Form	Contact Material	Dielectric Material	Shell Material, Finish	Material Flammability Rating	Primary Material	Ingress Protection	Features
Molex 1731090129	4	C DC	5 A	Housing Shell (Unthreaded)	Gold	Tin Plated	Steel	Solder	2	Female Sockets Receptacle	Signal	D-Sub	Through Hole	37 pos	White	125 °C	-55 °C	Machined	Copper Alloy	Polybutylene Terephthalate (PBT)
Molex 1731090509	4	C DC	5 A	Housing Shell (Unthreaded)	Gold			Solder	2	Female Sockets Receptacle	Signal	D-Sub	Through Hole	37 pos	Green	130 °C	-55 °C	Machined	Copper Alloy	Glass Filled Polyester	Steel Yellow Chromate Plated Zinc	UL94 V-0	Metal
Molex 1731090353	1	DE E	5 A	Board Side (4-40)	Gold	Tin Plated	Steel	Solder	2	Male Pins Plug	Signal	D-Sub	Through Hole	9	White	125 °C	-55 °C	Machined	Copper Alloy	Glass Filled Polyester		UL94 V-0		IP20	Board Lock Grounding Indents
Molex 1731090645	3	B DB	5 A	Housing Shell (Unthreaded)	Gold	Tin Plated	Steel	Solder Cup	2	Male Pins Plug	Signal	D-Sub	Free Hanging (In-Line)	25	White	125 °C	-55 °C	Machined	Copper Alloy	Glass Filled Polyester		UL94 V-0		IP20	Grounding Indents
Molex 1731091537
Molex 1731091747
Molex 1731092249
Molex 1731091155	1	DE E	7.5 A	Board Side (4-40)	Gold	Tin Plated	Steel	Solder	2	Female Sockets Receptacle	Signal	D-Sub	Through Hole	9	White	125 °C	-55 °C	Machined	Copper Alloy	Polybutylene Terephthalate (PBT)		UL94 V-0	Metal	IP20
Molex 1731091068	1	DE E	5 A	Housing Shell (M3)	Gold	Tin Plated	Steel	Solder	2	Male Pins Plug	Signal	D-Sub	Through Hole	9	White	125 °C	-55 °C	Machined	Copper Alloy	Polybutylene Terephthalate (PBT)		UL94 V-0	Metal		Grounding Indents
Molex 1731090387	1	DE E	5 A	Housing Shell (Unthreaded)	Gold	Tin Plated	Steel	Solder Cup	2	Male Pins Plug	Signal	D-Sub	Panel Mount	9	Green	130 °C	-55 °C	Machined	Copper Alloy	Glass Filled Polyester		UL94 V-0			Grounding Indents
