45-1819.1C90.003.108

Active

EAO

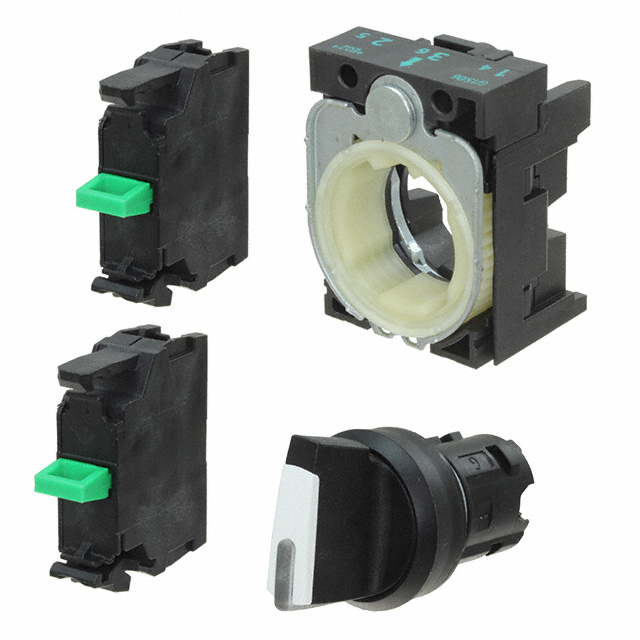

SWITCH SELECT 3POS DPST 10A 500V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 3POS DPST 10A 500V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-1819.1C90.003.108	45-1819 Series

Approval Agency	UL, CSA, VDE, CCC, CE	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO	DPST-NO
Current Rating (Amps)	10 A	10 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles	1000000 Cycles
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	On-Off-On	On-Off-On
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Type	Standard	Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

SWITCH SELECT 3POS DPST 10A 500V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Mechanical Life	Termination Style	Type	Switch Function	Circuit	Voltage Rating - AC	Voltage Rating - DC	Illumination	Ingress Protection	Approval Agency
EAO 45-1819.3C90.003.108	70 °C	-25 °C	22.3 mm	10 A	1000000 Cycles	Screw Terminal	Standard	On-Off-On	DPST-NO	500 V	500 V	Non-Illuminated	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE
EAO 45-1819.1C90.003.408	70 °C	-25 °C	22.3 mm	10 A	1000000 Cycles	Spring Terminal	Standard	On-Off-On	DPST-NO	500 V	500 V	Non-Illuminated	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE
EAO 45-1819.2C90.003.108	70 °C	-25 °C	22.3 mm	10 A	1000000 Cycles	Screw Terminal	Standard	On-Off-On	DPST-NO	500 V	500 V	Non-Illuminated	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE
EAO 45-1819.1C90.003.108	70 °C	-25 °C	22.3 mm	10 A	1000000 Cycles	Screw Terminal	Standard	On-Off-On	DPST-NO	500 V	500 V	Non-Illuminated	IP66, IP67, IP69K	CCC, CE, CSA, UL, VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 3 Position DPST-NO 10A (AC/DC) 500 V Panel Mount
