Description
General part information

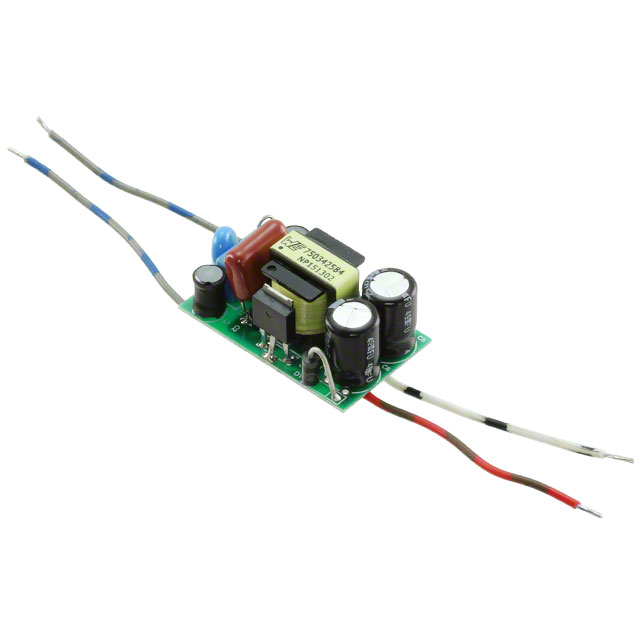

EVALLEDICL8201F1TOBO1
ICL8201, IPU50R3K0CE CoolMOS™ 1 Non-Isolated Output LED Driver Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | EVALLEDICL8201F1TOBO1 |
|---|---|
| Contents | Board |
| Current - Output / Channel | 180 mA |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | ICL8201, IPU50R3K0CE |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output (Max) | 47 V |
| Voltage - Output (Min) | 33 V |
