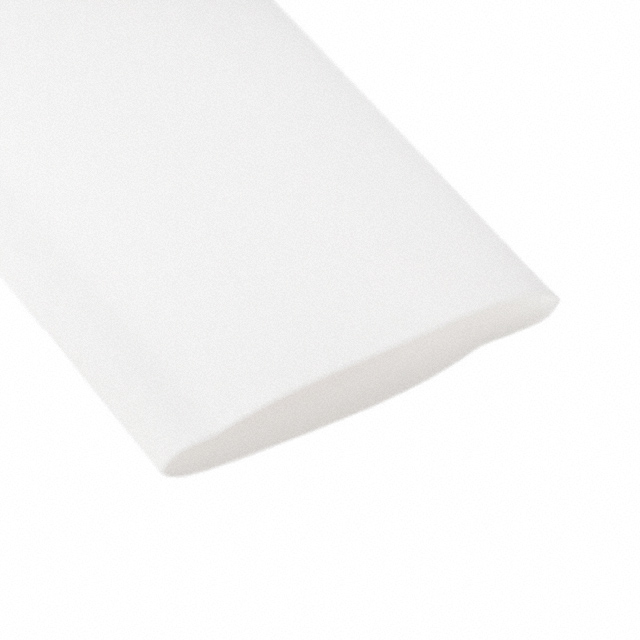

Specification	FP-301-1-WHITE-50'

Color	White
Features	Flame Retardant, Solvent Resistant
Inner Diameter - Recovered	0.5 in
Inner Diameter - Supplied	1 in
Length	50 ft
Material	Polyolefin (PO)
Operating Temperature (Max)	135 °C
Operating Temperature (Min)	-55 °C
Recovered Wall Thickness	0.035 in
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	100 °C
Shrinkage Ratio	2
Storage/Refrigeration Temperature (Maximum)	80 °F
Storage/Refrigeration Temperature (Minimum)	50 °F
Type	Flexible, Tubing

FP-301 Series

...

Part	Inner Diameter - Recovered	Features	Material	Inner Diameter - Supplied	Storage/Refrigeration Temperature (Maximum)	Storage/Refrigeration Temperature (Minimum)	Type	Shrink Temperature	Shrinkage Ratio	Operating Temperature (Min)	Operating Temperature (Max)	Color	Recovered Wall Thickness	Length	Shelf Life	Shelf Life Start	Length	Spool Size	Diameter	Included Items	Quantity
3M Electronic Specialty FP301-1/2-48"-GREEN-HDR-12 PCS	0.25 in	Flame Retardant Header Label Solvent Resistant	Polyolefin (PO)	0.5 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Green	0.025 in	48 in	120 Months	Date of Manufacture
3M Electronic Specialty FP301-3/32-48"-CLEAR-HDR-25 PCS	0.046 in	Header Label Solvent Resistant	Polyolefin (PO)	0.093 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Clear	0.02 in	48 in	120 Months	Date of Manufacture
3M Electronic Specialty FP-301 2" WT 100'	1 in	Flame Retardant Solvent Resistant	Polyolefin (PO)	2 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	White	0.045 in	0.042 ft 0.062 ft 0.083 ft 0.333 ft 0.5 ft 1.5 in 2.004 in 3 " 5 ft 25 ft 50 ft 100 ft	120 Months	Date of Manufacture	Enter Number of Feet in Order Quantity	100 ft
3M Electronic Specialty FP301-3-50'-RED-SPOOL	1.5 in	Flame Retardant Solvent Resistant	Polyolefin (PO)	3 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Red	0.05 in	50 ft	120 Months	Date of Manufacture
3M Electronic Specialty FP-301-3/32-BLACK-6"-PACK									2			Black							0.09375 in	36 pc Pkgs 6" (152.4mm) lengths	10
3M Electronic Specialty FP-301 2" BU 100'	1 in	Flame Retardant Solvent Resistant	Polyolefin (PO)	2 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Blue	0.045 in	0.042 ft 0.062 ft 0.083 ft 0.333 ft 0.5 ft 1.5 in 2.004 in 3 " 5 ft 25 ft 50 ft 100 ft	120 Months	Date of Manufacture	Enter Number of Feet in Order Quantity
3M Electronic Specialty FP301-2-50'-CLEAR-SPOOL	1 in	Solvent Resistant	Polyolefin (PO)	2 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Clear	0.045 in	50 ft	120 Months	Date of Manufacture
3M Electronic Specialty FP-301-1.5-YELLOW-4'-BULK	0.75 in	Flame Retardant Solvent Resistant	Polyolefin (PO)	1.5 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Yellow	0.04 in	48 in	120 Months	Date of Manufacture
3M Electronic Specialty FP301-3/16-100'-GREEN-SPOOL	0.093 in		Polyolefin (PO)	0.187 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Green	0.02 in	10 ft 12 in 25 ft 50 ft 100 ft	120 Months	Date of Manufacture
3M Electronic Specialty FP301-1-48"-CLEAR-24 PCS	0.5 in	Solvent Resistant	Polyolefin (PO)	1 in	80 °F	50 °F	Flexible Tubing	100 °C	2	-55 °C	135 °C	Clear	0.035 in	48 in	120 Months	Date of Manufacture

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

FP-301-1-WHITE-50' | Datasheet
