ANT-GNSSCP-TH18L1
ActiveTE Connectivity AMP Connectors
RF ANT GNSS PATCH L1 18X18 PIN
ANT-GNSSCP-TH18L1
ActiveTE Connectivity AMP Connectors
RF ANT GNSS PATCH L1 18X18 PIN
Description
General part information
ANT-GNSSCP-TH18L1

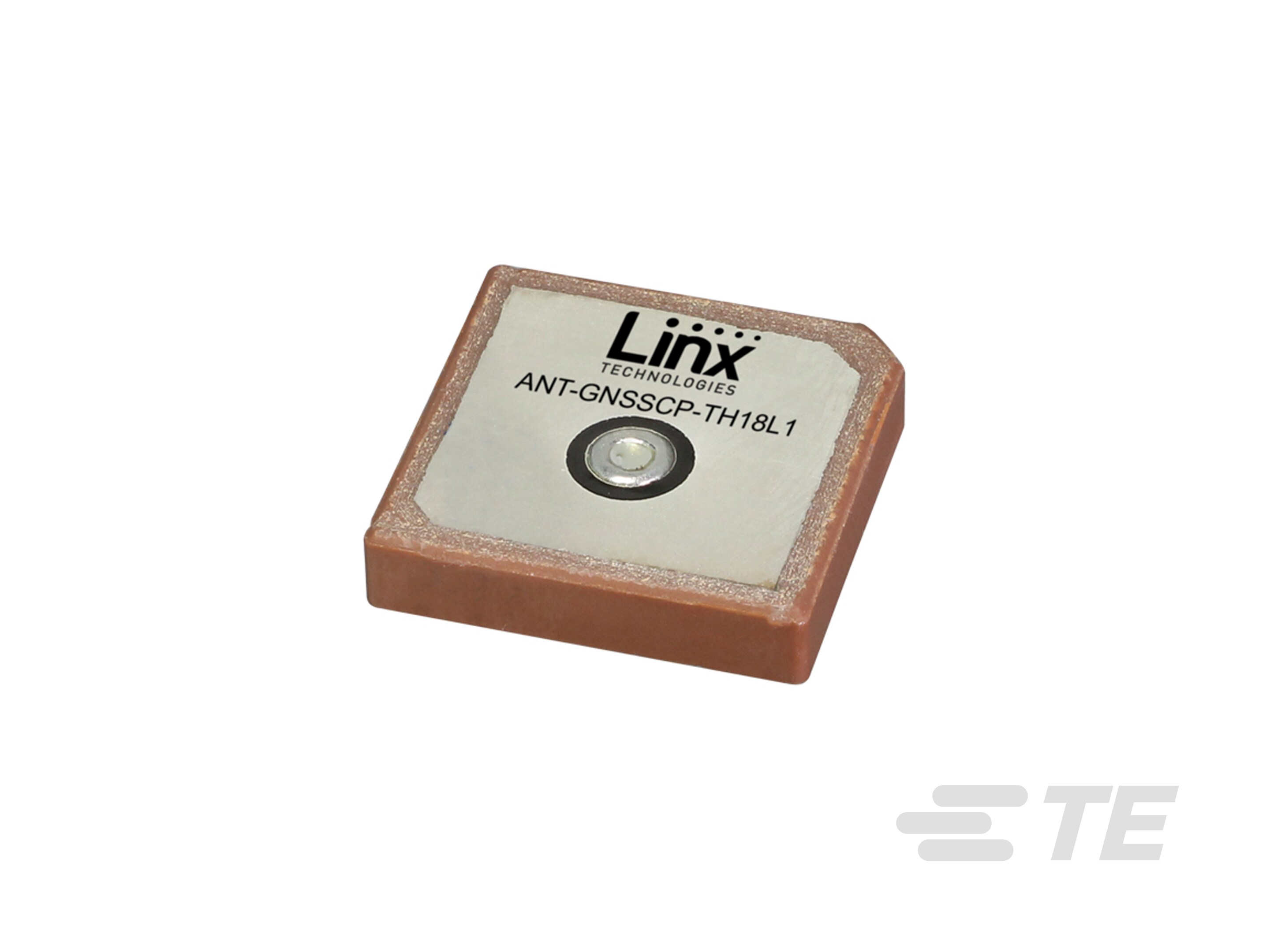

Patch Antenna, Multi Band, GNSS / GPS, Internal/Embedded Mount, Through-Hole/Tab Mount, Solder, Directional, Single Port, 3 < 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-GNSSCP-TH18L1 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GLONASS, GNSS, Galileo, BEIDOU, GPS |
| Frequency (Band) | 1.602 GHz |
| Frequency (Center) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.609 GHz |
| Frequency Range (Min) | 1.567 GHz |
| Gain | 4 dBi, 2.8 dBi, 5.1 dBi |
| Height (Max) | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max | 8 W |
| Return Loss | -6.5dB, -6.2dB, -5.6dB |
| Return Loss | -6.5 dB, -5.6 dB, -6.2 dB |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 2.9, 3.2, 2.8 |
