V5N3202HM3/I
ActiveVishay General Semiconductor - Diodes Division
5A, 200V DFN33A TMBS RECT
V5N3202HM3/I
ActiveVishay General Semiconductor - Diodes Division
5A, 200V DFN33A TMBS RECT
Description
General part information
V5N3202HM3/I
Diode 200 V 2A Surface Mount DFN33A
Technical Specifications
Parameters and characteristics for this part
| Specification | V5N3202HM3/I |
|---|---|
| Capacitance | 340 pF |
| Current - Average Rectified (Io) | 2 A |
| Current - Reverse Leakage | 70 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 175 °C |
| Operating Temperature - Junction (Min) | -40 °C |

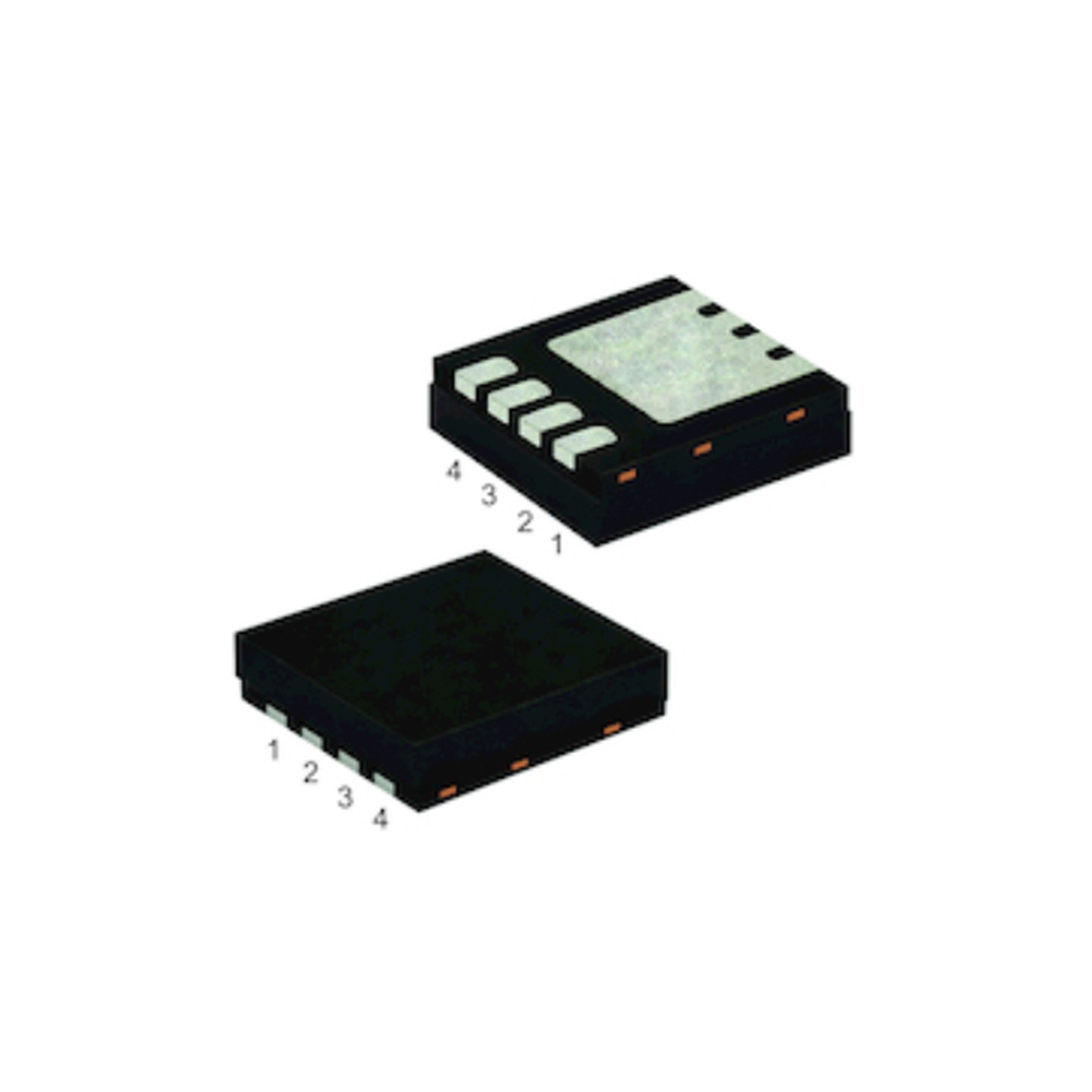

| Package / Case | 8-PowerVDFN |
| Package Name | DFN33A |
| Qualification | AEC-Q101 |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Voltage - Forward (Vf) (Max) | 840 mV |
