FA-20H 30.00M-G0AAAAU60REB

Active

EPSON

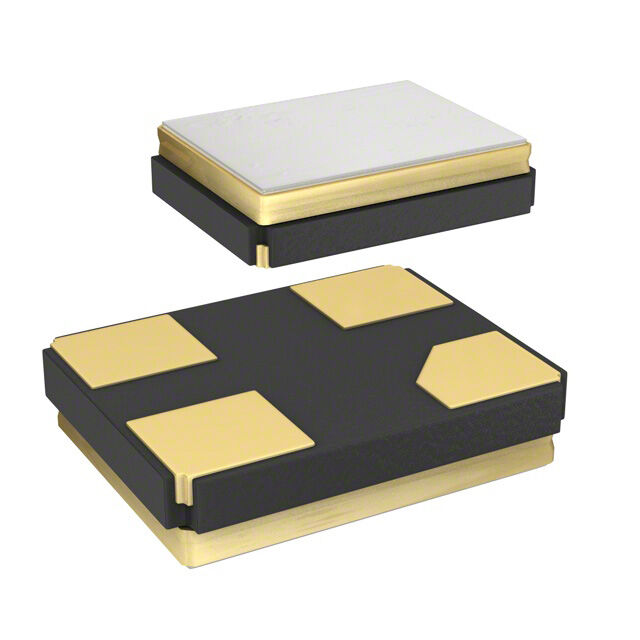

CRYSTAL 30.0000MHZ 16PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.98

Description

General part information

FA-20H Series

30 MHz ±10ppm Crystal 16pF 60 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FA-20H 30.00M-G0AAAAU60REB	FA-20H Series

ESR (Equivalent Series Resistance)	60 Ohms	40 - 80 Ohm
Frequency	30 MHz	16 - 48 MHz
Frequency Stability	10 ppm	10 - 30 ppm
Frequency Tolerance	10 ppm	10 - 30 ppm
Height - Seated (Max) [Max] [z]	0.022 in	0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm	0.55 mm
Load Capacitance	16 pF	6 - 18 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature	-	85 °C
Operating Temperature	-	-40 - -30 °C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	0.098 "	0.098 "
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Supplier Device Package	4-SMD (2.5x2)	4-SMD (2.5x2)
Type	MHz Crystal	MHz Crystal

FA-20H Series

FA-20H 16.0000MA20V-AC5: XTAL MH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Operating Mode	Frequency Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	ESR (Equivalent Series Resistance)	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Load Capacitance	Frequency Stability	Supplier Device Package
EPSON FA-20H 16.0000MA20V-AC5	85 °C	-40 °C	16 MHz	Fundamental	20 ppm	0.022 in	0.55 mm	4-SMD, No Lead	80 Ohm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 24.00M-A0AANNG48RGB	85 °C	-40 °C	24 MHz	Fundamental		0.022 in	0.55 mm	4-SMD, No Lead	80 Ohm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 40.0000ME15P-AS	85 °C	-40 °C	40 MHz	Fundamental	15 ppm	0.022 in	0.55 mm	4-SMD, No Lead	40 Ohms	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 26.0000MF12V-W3	85 °C	-40 °C	26 MHz	Fundamental	12 ppm	0.022 in	0.55 mm	4-SMD, No Lead	60 Ohms	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 24.0000MD30V-C5	85 °C	-40 °C	24 MHz	Fundamental	30 ppm	0.022 in	0.55 mm	4-SMD, No Lead	80 Ohm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 24.0000MF10Z-AJ	85 °C	-40 °C	24 MHz	Fundamental	10 ppm	0.022 in	0.55 mm	4-SMD, No Lead	80 Ohm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 24.0000MD20Z-G	85 °C	-40 °C	24 MHz	Fundamental	20 ppm	0.022 in	0.55 mm	4-SMD, No Lead	80 Ohm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
EPSON FA-20H 25.00M-90AANNG80RE0	85 °C	-40 °C	25 MHz	Fundamental		0.022 in	0.55 mm	4-SMD, No Lead	80 Ohm	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	9 pF
EPSON FA-20H 32.0000ME15Y-K	85 °C	-30 ░C	32 MHz	Fundamental	15 ppm	0.022 in	0.55 mm	4-SMD, No Lead	50 Ohms	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	10 pF	15 ppm	4-SMD (2.5x2)
EPSON FA-20H 32.0000MF25X-B0	85 °C	-40 °C	32 MHz	Fundamental	25 ppm	0.022 in	0.55 mm	4-SMD, No Lead	50 Ohms	MHz Crystal	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount
