A7FFB-1510M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AFP15B/AE15M/AFP15B
Deep-Dive with AI
Search across all available documentation for this part.
A7FFB-1510M
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AFP15B/AE15M/AFP15B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7FFB-1510M | A7FFB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 15 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB15 | DB15, DB37, DB9, DB25 |
| Usage | Patch | Patch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.65 | |
| 10 | $ 22.91 | |||
| 25 | $ 21.27 | |||
| 50 | $ 20.11 | |||
| 100 | $ 19.01 | |||
| 250 | $ 17.66 | |||
| 500 | $ 16.93 | |||
A7FFB Series
CABLE D-SUB-AFP15B/AE15M/AFP15B
| Part | Contact Finish | Shielding | Type | Usage | Number of Positions | 2nd Connector | 1st Connector | Length | Length | Contact Finish Thickness | Contact Finish Thickness | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7FFB-1510M | Gold | Unshielded | DB15 | Patch | 15 | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7FFB-3710G | Gold | Unshielded | DB37 | Patch | 37 | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7FFB-0910G | Gold | Unshielded | DB9 | Patch | 9 | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7FFB-2510M | Gold | Unshielded | DB25 | Patch | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7FFB-3706G | Gold | Unshielded | DB37 | Patch | 37 | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7FFB-2506G | Gold | Unshielded | DB25 | Patch | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | ||
TE Connectivity AMP Connectors A7FFB-0906M | Gold | Unshielded | DB9 | Patch | 9 | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7FFB-1510G | Gold | Unshielded | DB15 | Patch | 15 | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | |
TE Connectivity AMP Connectors A7FFB-0910M | Gold | Unshielded | DB9 | Patch | 9 | Receptacle, Female Sockets | Female Sockets, Receptacle | 10 ft | 3.05 m | 0.76 Ám | 30 Áin | Multiple, Ribbon |
TE Connectivity AMP Connectors A7FFB-2506M | Gold | Unshielded | DB25 | Patch | Receptacle, Female Sockets | Female Sockets, Receptacle | 6 ft | 1.83 m | 0.76 Ám | 30 Áin | Multiple, Ribbon |
Description
General part information
A7FFB Series

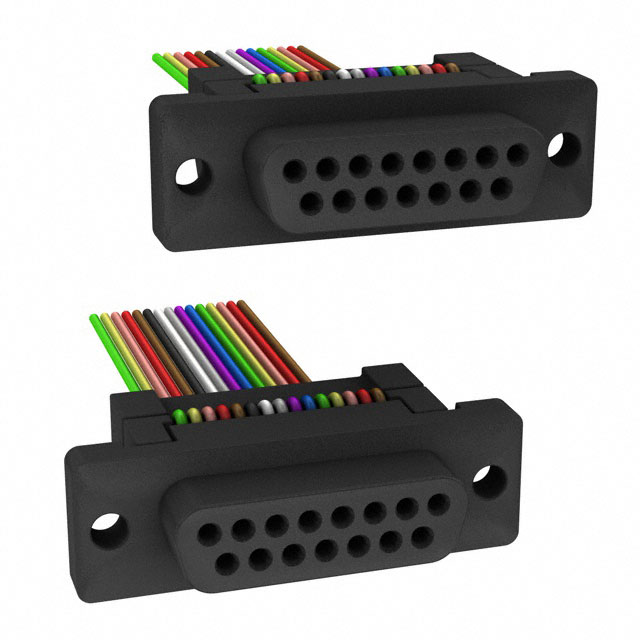

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
