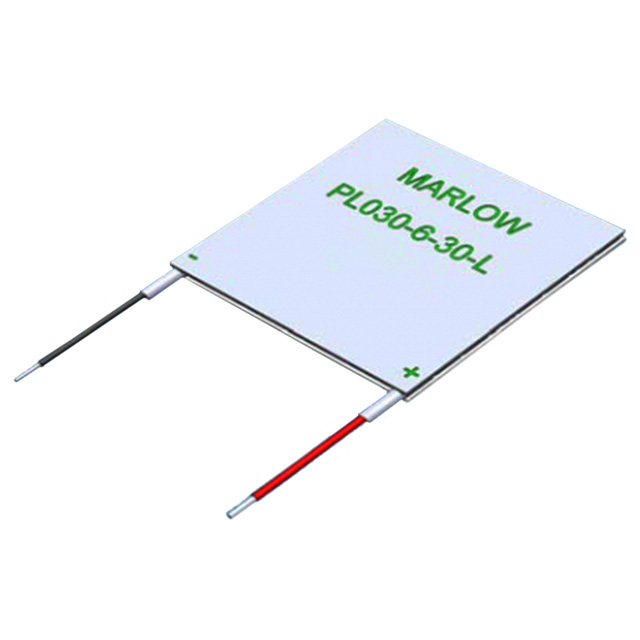

PL030-6-30-01LS
ActiveMarlow Industries, Inc.
TEM 29.7X29.7X3.81MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PL030-6-30-01LS
ActiveMarlow Industries, Inc.
TEM 29.7X29.7X3.81MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PL030-6-30-01LS |
|---|---|
| Current - Max [Max] | 5.6 A |
| Delta Tmax @ Th | 66 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Qmax @ Th | 30 W |
| Resistance | 1.2 Ohms |
| Size / Dimension [x] | 29.7 mm |
| Size / Dimension [y] | 29.7 mm |
| Voltage - Max [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.73 | |
| 5 | $ 36.31 | |||
| 20 | $ 35.43 | |||
| 40 | $ 34.11 | |||
| 60 | $ 33.23 | |||
| 100 | $ 32.35 | |||
Description
General part information
PL030 Series
Peltier Module 30.0W @ 27°C 5.6 A 85°C
Documents
Technical documentation and resources
