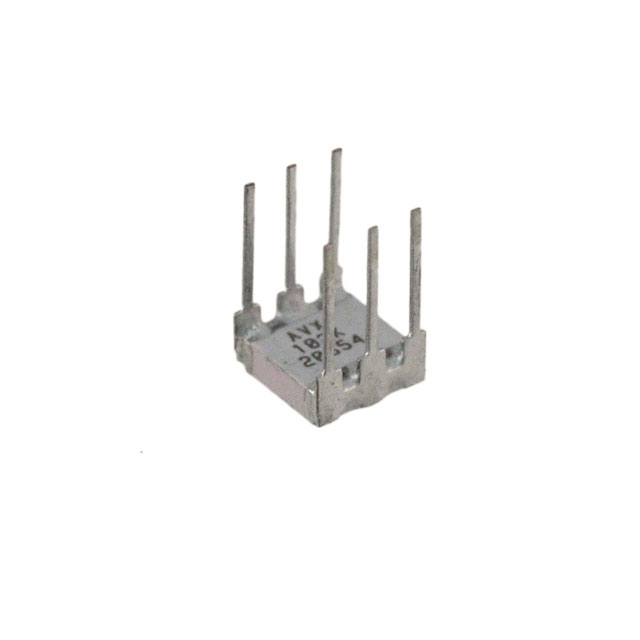

SMX52A102KAN120
ActiveKYOCERA AVX
CAP CER 1000PF 200V NP0 6-DIP
SMX52A102KAN120
ActiveKYOCERA AVX
CAP CER 1000PF 200V NP0 6-DIP
Description
General part information
SMX52A102KAN120
1000 pF ±10% 200V Ceramic Capacitor C0G, NP0 6-DIP
Technical Specifications
Parameters and characteristics for this part
| Specification | SMX52A102KAN120 |
|---|---|
| Applications | SMPS Filtering |
| Capacitance | 1000 pF |
| Features | High Temperature, Low ESL (Stacked) |
| Height - Seated (Max) | 0.12 in |
| Lead Spacing | 0.25 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 6-DIP |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.3 in |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 10 % |
| Voltage - Rated | 200 VDC |
