ATS-01G-41-C2-R0

Active

Advanced Thermal Solutions Inc.

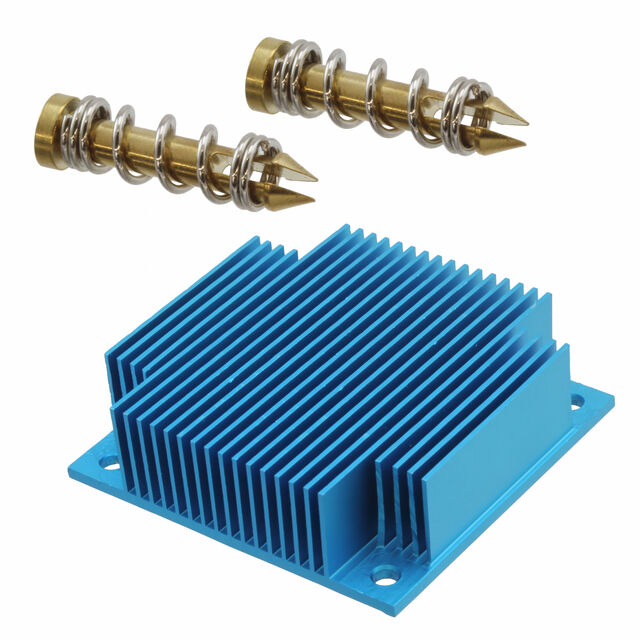

HEATSINK 57.9X60.96X17.78MM T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-01G-41-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 57.9X60.96X17.78MM T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-01G-41-C2-R0	ATS-01G Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 in
Fin Height	-	5.84 - 35 mm
Fin Height [z]	17.78 mm	10 - 30 mm
Fin Height [z]	0.7 in	0.394 - 1.181 in
Length	2.28 "	0.984 - 2.756 "
Length	57.9 mm	25 - 70 mm
Length	-	30 - 60 mm
Length	-	1.181 - 2.362 in
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	10.03 °C/W, 100 LFM	2.22 - 100 °C/W
Type	Top Mount	Top Mount
Width	-	25 - 57.6 mm
Width	-	1.181 - 2.267 in
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width [y]	60.96 mm	50 - 70 mm
Width [y]	2.4 in	1.45 - 2.756 in

ATS-01G Series

HEATSINK 70X70X12MM XCUT T412

...

Part	Width [y]	Width [y]	Material Finish	Type	Fin Height [z]	Fin Height [z]	Shape	Package Cooled	Material	Thermal Resistance @ Forced Air Flow	Attachment Method	Length	Length	Fin Height	Fin Height	Width	Width	Length [x]	Length [x]	Width [x]	Width [x]
Advanced Thermal Solutions Inc. ATS-01G-210-C3-R0	2.756 in	70 mm	Blue Anodized	Top Mount	0.472 in	12 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	5.24 °C/W	Push Pin	70 mm	2.756 "
Advanced Thermal Solutions Inc. ATS-01G-144-C1-R0			Blue Anodized	Top Mount			Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	5.48 °C/W, 100 LFM	Push Pin			0.984 in	25 mm	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-01G-64-C1-R0			Blue Anodized	Top Mount			Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	9.36 °C/W	Push Pin			0.984 in	25 mm					1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-01G-151-C2-R0			Blue Anodized	Top Mount	1.181 in	30 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	3.93 °C/W	Push Pin					35 mm		35 mm	1.378 in	1.378 in
Advanced Thermal Solutions Inc. ATS-01G-127-C3-R0			Blue Anodized	Top Mount	0.79 in	20 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	3.91 °C/W	Push Pin							54 mm	2.126 "	2.126 "	54 mm
Advanced Thermal Solutions Inc. ATS-01G-21-C2-R0			Blue Anodized	Top Mount	0.394 in	10 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	16.28 °C/W, 100 LFM	Push Pin							60 mm	2.362 in	2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-01G-80-C2-R0			Blue Anodized	Top Mount			Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	19.03 °C/W, 100 LFM	Push Pin			0.59 "	15 mm	30 mm	1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-01G-101-C3-R0			Blue Anodized	Top Mount	1.181 in	30 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	6.77 °C/W, 100 LFM	Push Pin	45 mm				45 mm			1.772 "	1.772 in
Advanced Thermal Solutions Inc. ATS-01G-113-C2-R0			Blue Anodized	Top Mount	0.394 in	10 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	11.79 °C/W, 100 LFM	Push Pin									1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-01G-110-C3-R1			Blue Anodized	Top Mount	0.5 in	12.7 mm	Fins, Square	ASIC, BGA, CPU, LGA	Aluminum	27.08 °C/W	Push Pin							54 mm	2.126 "	2.126 "	54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.00
		10	$ 6.81
		30	$ 6.66

Description

General part information

ATS-01G Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
